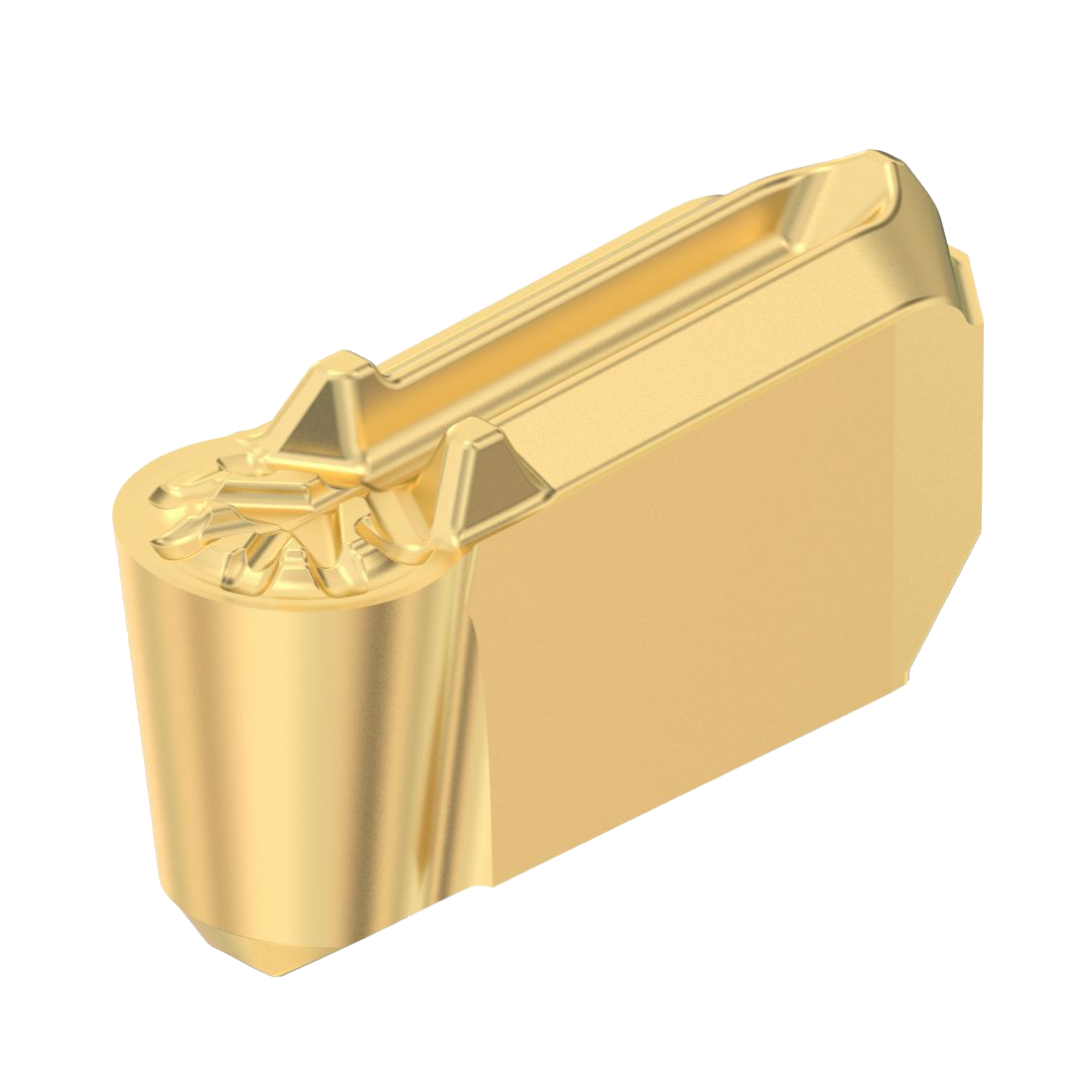

Kennametal Beyond Evolution GUP Full-Radius Grooving Inserts — Ground — Metric
Kennametal Beyond Evolution GUP Full-Radius Grooving Inserts — Ground — Metric
Pricing by quote
Precision-ground full-radius inserts for grooving and profiling. Compare cutting widths, radii and grades to select the required material number.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Cutting width W [mm] | Center radius RC [mm] | Insert length LI [mm] | Cutting depth T [mm] | ISO catalog number | Grade | Workpiece groups | Insert hand | Verified holder options (article IDs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 7167174 | ER0200M02P00GUP / KCU25B | 2 | 1 | 8.91 | 1 | ER0200M02P00GUP | KCU25B | P, M, K, N, S | N | 5953953; 5953954; 5953955; 5953956; 5953957; 5953958 |
| 7096918 | ER0200M02P00GUP / KCU10B | 2 | 1 | 8.91 | 1 | ER0200M02P00GUP | KCU10B | P, M, K, N, S, H | N | 5953953; 5953954; 5953955; 5953956; 5953957; 5953958 |
| 6231906 | ER0200M02P00GUP / KCU25 | 2 | 1 | 8.91 | 1 | ER0200M02P00GUP | KCU25 | P, M, K, N, S | N | 5953953; 5953954; 5953955; 5953956; 5953957; 5953958 |
| 6231903 | ER0200M02P00GUP / KCU10 | 2 | 1 | 8.91 | 1 | ER0200M02P00GUP | KCU10 | P, M, K, N, S, H | N | 5953953; 5953954; 5953955; 5953956; 5953957; 5953958 |
| 7096868 | ER0300M03P00GUP / KCU10B | 3 | 1.5 | 9.5 | 1.5 | ER0300M03P00GUP | KCU10B | P, M, K, N, S, H | N | 5939437; 5939438; 5939441; 5939442; 5939447; 5939448; 5939451; 5939452 |
| 7167178 | ER0300M03P00GUP / KCU25B | 3 | 1.5 | 9.5 | 1.5 | ER0300M03P00GUP | KCU25B | P, M, K, N, S | N | 5939437; 5939438; 5939441; 5939442; 5939447; 5939448; 5939451; 5939452 |
| 5988833 | ER0300M03P00GUP / K313 | 3 | 1.5 | 9.5 | 1.5 | ER0300M03P00GUP | K313 | N, S | N | 5939437; 5939438; 5939441; 5939442; 5939447; 5939448; 5939451; 5939452 |
| 6012720 | ER0300M03P00GUP / KCU10 | 3 | 1.5 | 9.5 | 1.5 | ER0300M03P00GUP | KCU10 | P, M, K, N, S, H | N | 5939437; 5939438; 5939441; 5939442; 5939447; 5939448; 5939451; 5939452 |
| 5988780 | ER0300M03P00GUP / KCU25 | 3 | 1.5 | 9.5 | 1.5 | ER0300M03P00GUP | KCU25 | P, M, K, N, S | N | 5939437; 5939438; 5939441; 5939442; 5939447; 5939448; 5939451; 5939452 |
| 5988858 | ER0400M04P00GUP / K313 | 4 | 2 | 10.1 | 1.4 | ER0400M04P00GUP | K313 | N, S | N | 5939432; 5939433; 5939435; 5939436; 5939439; 5939440; 5939443; 5939444; 5939445; 5939446 |
| 7096869 | ER0400M04P00GUP / KCU10B | 4 | 2 | 10.1 | 1.4 | ER0400M04P00GUP | KCU10B | P, M, K, N, S, H | N | 5939432; 5939433; 5939435; 5939436; 5939439; 5939440; 5939443; 5939444; 5939445; 5939446 |
| 7167182 | ER0400M04P00GUP / KCU25B | 4 | 2 | 10.1 | 1.4 | ER0400M04P00GUP | KCU25B | P, M, K, N, S | N | 5939432; 5939433; 5939435; 5939436; 5939439; 5939440; 5939443; 5939444; 5939445; 5939446 |
| 6012721 | ER0400M04P00GUP / KCU10 | 4 | 2 | 10.1 | 1.4 | ER0400M04P00GUP | KCU10 | P, M, K, N, S, H | N | 5939432; 5939433; 5939435; 5939436; 5939439; 5939440; 5939443; 5939444; 5939445; 5939446 |
| 5988781 | ER0400M04P00GUP / KCU25 | 4 | 2 | 10.1 | 2 | ER0400M04P00GUP | KCU25 | P, M, K, N, S | N | 5939432; 5939433; 5939435; 5939436; 5939439; 5939440; 5939443; 5939444; 5939445; 5939446 |
| 5988859 | ER0500M05P00GUP / K313 | 5 | 2.5 | 12.2 | 2.5 | ER0500M05P00GUP | K313 | N, S | N | 5954219; 5954220; 5954234; 5954235; 5954238; 5954239; 5954248; 5954249; 5954253; 5954254 |
| 7167186 | ER0500M05P00GUP / KCU25B | 5 | 2.5 | 12.2 | 2.5 | ER0500M05P00GUP | KCU25B | P, M, K, N, S | N | 5954219; 5954220; 5954234; 5954235; 5954238; 5954239; 5954248; 5954249; 5954253; 5954254 |
| 7096870 | ER0500M05P00GUP / KCU10B | 5 | 2.5 | 12.2 | 2.5 | ER0500M05P00GUP | KCU10B | P, M, K, N, S, H | N | 5954219; 5954220; 5954234; 5954235; 5954238; 5954239; 5954248; 5954249; 5954253; 5954254 |
| 6012722 | ER0500M05P00GUP / KCU10 | 5 | 2.5 | 12.2 | 2.5 | ER0500M05P00GUP | KCU10 | P, M, K, N, S, H | N | 5954219; 5954220; 5954234; 5954235; 5954238; 5954239; 5954248; 5954249; 5954253; 5954254 |
| 5988782 | ER0500M05P00GUP / KCU25 | 5 | 2.5 | 12.2 | 2.5 | ER0500M05P00GUP | KCU25 | P, M, K, N, S | N | 5954219; 5954220; 5954234; 5954235; 5954238; 5954239; 5954248; 5954249; 5954253; 5954254 |
| 5988860 | ER0600M06P00GUP / K313 | 6 | 3 | 14.5 | 3 | ER0600M06P00GUP | K313 | N, S | N | 5954213; 5954217; 5954218; 5954232; 5954233; 5954236; 5954237; 5954242; 5954246; 5954247 |
| 7167190 | ER0600M06P00GUP / KCU25B | 6 | 3 | 14.5 | 3 | ER0600M06P00GUP | KCU25B | P, M, K, N, S | N | 5954213; 5954217; 5954218; 5954232; 5954233; 5954236; 5954237; 5954242; 5954246; 5954247 |
| 7096871 | ER0600M06P00GUP / KCU10B | 6 | 3 | 14.5 | 3 | ER0600M06P00GUP | KCU10B | P, M, K, N, S, H | N | 5954213; 5954217; 5954218; 5954232; 5954233; 5954236; 5954237; 5954242; 5954246; 5954247 |
| 6012723 | ER0600M06P00GUP / KCU10 | 6 | 3 | 14.5 | 3 | ER0600M06P00GUP | KCU10 | P, M, K, N, S, H | N | 5954213; 5954217; 5954218; 5954232; 5954233; 5954236; 5954237; 5954242; 5954246; 5954247 |
| 5988783 | ER0600M06P00GUP / KCU25 | 6 | 3 | 14.5 | 3 | ER0600M06P00GUP | KCU25 | P, M, K, N, S | N | 5954213; 5954217; 5954218; 5954232; 5954233; 5954236; 5954237; 5954242; 5954246; 5954247 |
| 5988861 | ER0800M08P00GUP / K313 | 8 | 4 | 17.4 | 4 | ER0800M08P00GUP | K313 | N, S | N | 5954212; 5954215; 5954216; 5954231; 5954241; 5954244; 5954245; 5954250 |
| 7167194 | ER0800M08P00GUP / KCU25B | 8 | 4 | 17.4 | 4 | ER0800M08P00GUP | KCU25B | P, M, K, N, S | N | 5954212; 5954215; 5954216; 5954231; 5954241; 5954244; 5954245; 5954250 |
| 7096872 | ER0800M08P00GUP / KCU10B | 8 | 4 | 17.4 | 4 | ER0800M08P00GUP | KCU10B | P, M, K, N, S, H | N | 5954212; 5954215; 5954216; 5954231; 5954241; 5954244; 5954245; 5954250 |
| 6012724 | ER0800M08P00GUP / KCU10 | 8 | 4 | 17.4 | 4 | ER0800M08P00GUP | KCU10 | P, M, K, N, S, H | N | 5954212; 5954215; 5954216; 5954231; 5954241; 5954244; 5954245; 5954250 |
| 5988785 | ER0800M08P00GUP / KCU25 | 8 | 4 | 17.4 | 4 | ER0800M08P00GUP | KCU25 | P, M, K, N, S | N | 5954212; 5954215; 5954216; 5954231; 5954241; 5954244; 5954245; 5954250 |
