Choose a geometry for the feature
The range brings together precision-ground GUP full-radius configurations and CL cutoff configurations. Compare the cutting width, radius or cutoff geometry and grade by exact material number.
Select the corresponding holder

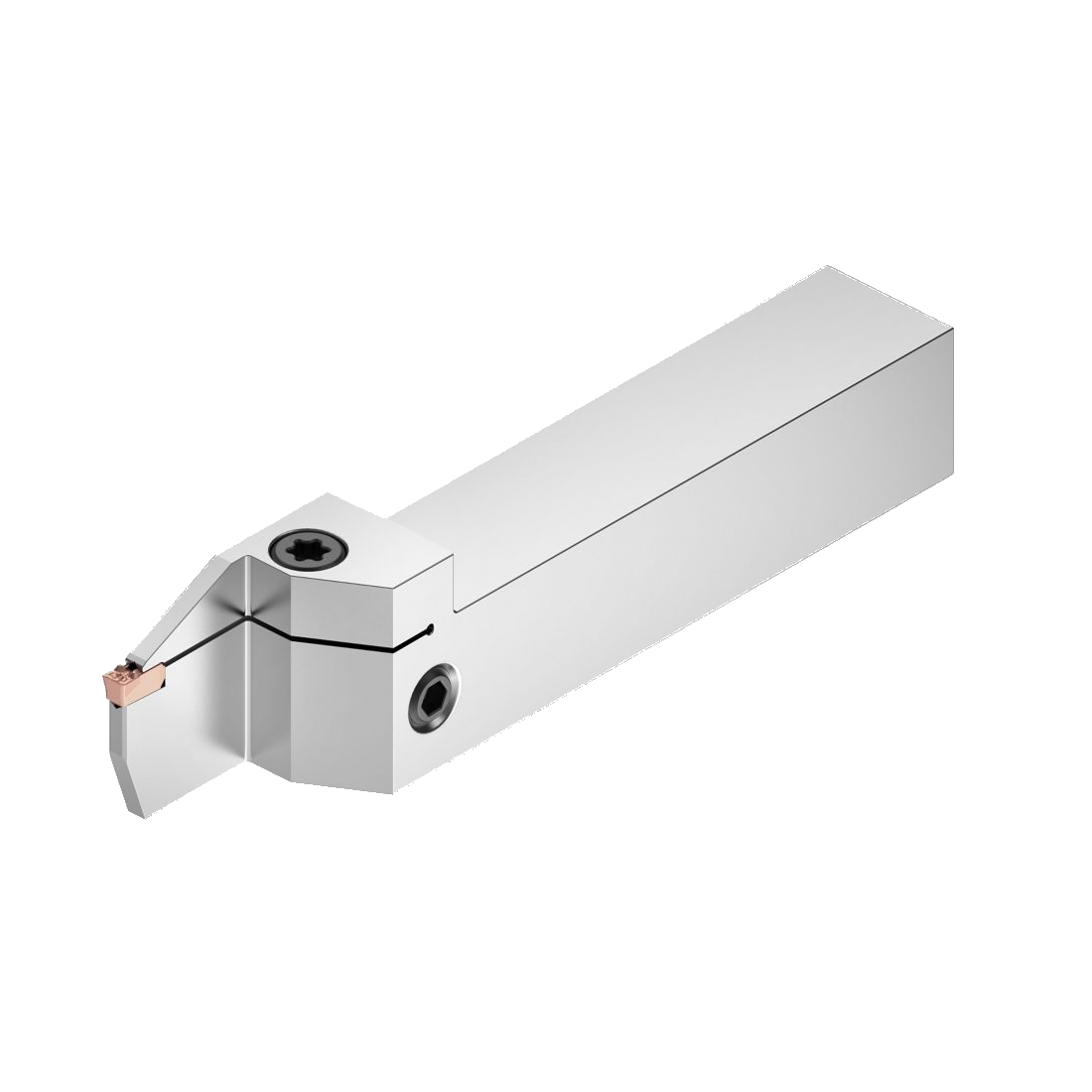

Integral and reinforced front-clamp holder configurations provide different dimensions and clearances. Use the exact manufacturer insert-to-holder association, then check shank dimensions, hand, reach and coolant connection for the machine.
Use the technical reference with the current configuration
The linked manufacturer reference explains the tooling system and dimension symbols. Read current dimensions from the selected material-number row and choose cutting guidance for the actual geometry, grade and workpiece.
Frequently asked questions
Will one Beyond Evolution holder accept every insert in this range?
No. The reviewed inserts include different holder-seat requirements. Confirm the exact pairing rather than using the Beyond Evolution name as an interchangeability rule.
What should a complete tooling quote include?
List the insert and holder material numbers, quantities, workpiece, groove or cutoff dimensions, machine and coolant details. Tech Tool will confirm the quoted components and current commercial terms.
