Kennametal KenTIP FS 5xD Modular Drill Body — SCF Shank — Metric
Kennametal KenTIP FS 5xD Modular Drill Body — SCF Shank — Metric
Pricing by quote

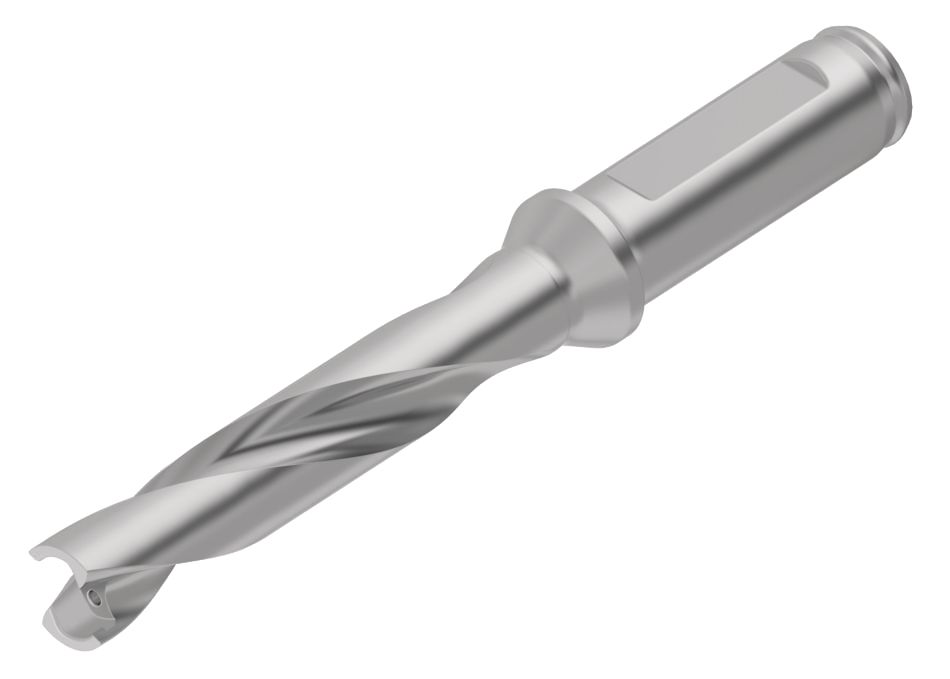

Kennametal KenTIP FS 5xD modular drill bodies with SCF shanks, listed in metric dimensions. Select the exact material number by its drilling diameter range, drilling depth and shank dimensions. Confirm the body-to-tip pairing before requesting a quote for the required configuration.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Drill diameter D1 [mm] | Maximum drill diameter D1MAX [mm] | Maximum drilling depth L4 [mm] | Overall length L [mm] | Holder insert attachment length LATTH [mm] | Insert Gage Length L1 [mm] | Shank/bore diameter D [mm] | ISO catalog number | ANSI catalog number | Insert seat size SSC |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6389440 | KTFS080R05SCF12M | 8 | 8.499 | 43 | 109 | 59.4 | 64 | 12 | KTFS080R05SCF12M | KTFS080R05SCF12M | F |
| 6389441 | KTFS085R05SCF12M | 8.5 | 8.999 | 45 | 111 | 61.1 | 66 | 12 | KTFS085R05SCF12M | KTFS085R05SCF12M | G |
| 6389442 | KTFS090R05SCF12M | 9 | 9.499 | 48 | 114 | 63.8 | 69 | 12 | KTFS090R05SCF12M | KTFS090R05SCF12M | H |
| 6389443 | KTFS095R05SCF12M | 9.5 | 9.999 | 50 | 116 | 65.5 | 71 | 12 | KTFS095R05SCF12M | KTFS095R05SCF12M | I |
| 6372597 | KTFS100R05SCF16M | 10 | 10.499 | 53 | 125 | 71.2 | 77 | 16 | KTFS100R05SCF16M | KTFS100R05SCF16M | J |
| 6372598 | KTFS105R05SCF16M | 10.5 | 10.999 | 55 | 127 | 72.9 | 79 | 16 | KTFS105R05SCF16M | KTFS105R05SCF16M | K |
| 6372599 | KTFS110R05SCF16M | 11 | 11.499 | 58 | 130 | 75.6 | 82 | 16 | KTFS110R05SCF16M | KTFS110R05SCF16M | L |
| 6372600 | KTFS115R05SCF16M | 11.5 | 11.999 | 60 | 132 | 77.3 | 84 | 16 | KTFS115R05SCF16M | KTFS115R05SCF16M | M |
| 6372601 | KTFS120R05SCF16M | 12 | 12.499 | 63 | 135 | 80 | 87 | 16 | KTFS120R05SCF16M | KTFS120R05SCF16M | N |
| 6372602 | KTFS125R05SCF16M | 12.5 | 12.999 | 65 | 137 | 81.8 | 89 | 16 | KTFS125R05SCF16M | KTFS125R05SCF16M | O |
| 6372603 | KTFS130R05SCF16M | 13 | 13.499 | 68 | 140 | 84.5 | 92 | 16 | KTFS130R05SCF16M | KTFS130R05SCF16M | P |
| 6372604 | KTFS135R05SCF16M | 13.5 | 13.999 | 70 | 142 | 86.2 | 94 | 16 | KTFS135R05SCF16M | KTFS135R05SCF16M | Q |
| 6372605 | KTFS140R05SCF16M | 14 | 14.499 | 73 | 145 | 88.9 | 97 | 16 | KTFS140R05SCF16M | KTFS140R05SCF16M | R |
| 6372606 | KTFS145R05SCF16M | 14.5 | 14.999 | 75 | 147 | 90.6 | 99 | 16 | KTFS145R05SCF16M | KTFS145R05SCF16M | S |
| 6372607 | KTFS150R05SCF20M | 15 | 15.999 | 80 | 157 | 98.3 | 107 | 20 | KTFS150R05SCF20M | KTFS150R05SCF20M | T |
| 6372608 | KTFS160R05SCF20M | 16 | 16.999 | 85 | 162 | 102.7 | 112 | 20 | KTFS160R05SCF20M | KTFS160R05SCF20M | U |
| 6372609 | KTFS170R05SCF20M | 17 | 17.999 | 90 | 167 | 107.1 | 117 | 20 | KTFS170R05SCF20M | KTFS170R05SCF20M | V |
| 6389287 | KTFS180R05SCF25M | 18 | 18.999 | 95 | 181 | 114.6 | 125 | 25 | KTFS180R05SCF25M | KTFS180R05SCF25M | W |
| 6389288 | KTFS190R05SCF25M | 19 | 19.999 | 100 | 186 | 119 | 130 | 25 | KTFS190R05SCF25M | KTFS190R05SCF25M | X |
| 6389289 | KTFS200R05SCF25M | 20 | 20.999 | 105 | 191 | 123.4 | 135 | 25 | KTFS200R05SCF25M | KTFS200R05SCF25M | Y |
| 6389290 | KTFS210R05SCF25M | 21 | 21.999 | 110 | 196 | 127.8 | 140 | 25 | KTFS210R05SCF25M | KTFS210R05SCF25M | Z |
| 6389311 | KTFS220R05SCF25M | 22 | 22.999 | 115 | 201 | 132.2 | 145 | 25 | KTFS220R05SCF25M | KTFS220R05SCF25M | ZA |
| 6389312 | KTFS230R05SCF25M | 23 | 23.999 | 120 | 206 | 136.7 | 150 | 25 | KTFS230R05SCF25M | KTFS230R05SCF25M | ZB |
| 6389313 | KTFS240R05SCF25M | 24 | 24.999 | 125 | 211 | 141.1 | 155 | 25 | KTFS240R05SCF25M | KTFS240R05SCF25M | ZC |
| 6389314 | KTFS250R05SCF25M | 25 | 26 | 130 | 216 | 145.5 | 160 | 25 | KTFS250R05SCF25M | KTFS250R05SCF25M | ZD |
