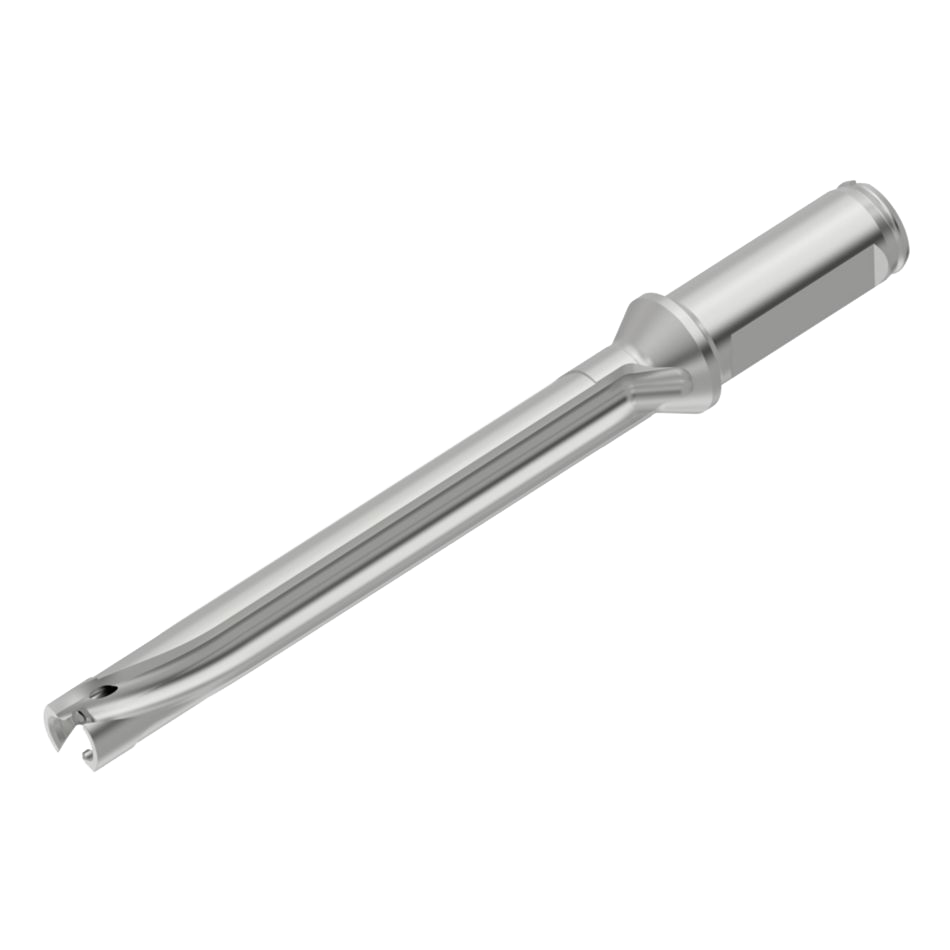

Kennametal KenTIP FS drill body — representative manufacturer series image; refer to the selected material number for exact geometry, dimensions and configuration.

Request quote

Kennametal KenTIP FS 8xD Modular Drill Body — Straight Flute — Flanged Shank with Flat — Metric

Name: Kennametal KenTIP FS 8xD Modular Drill Body — Straight Flute — Flanged Shank with Flat — Metric — KTFS080S08SCF12M
Brand: Kennametal
SKU: 7303438

Pricing by quote

Kennametal KenTIP FS 8xD modular drill bodies with straight flutes and flanged shanks with flats, listed in metric dimensions. Select the exact material number by its drilling diameter range, drilling depth and shank dimensions. Confirm the body-to-tip pairing before requesting a quote for the required configuration.

SKU: 7303438

Availability confirmed with your quote.

Technical Specifications

Tool configurations

Article ID	Configuration	Drill diameter D1 [mm]	Maximum drill diameter D1MAX [mm]	Maximum drilling depth L4 [mm]	Overall length L [mm]	Manufacturer dimension L3 [mm]	Holder insert attachment length LATTH [mm]	Insert Gage Length L1 [mm]	Shank/bore diameter D [mm]	Shank length LS [mm]	ISO catalog number	ANSI catalog number	Machine-side adapter style
7303438	KTFS080S08SCF12M	8	8.499	68	134.0	83.5	84.4	89	12	45	KTFS080S08SCF12M	KTFS080S08SCF12M	Cylindrical Shank 1 Flat
7303439	KTFS085S08SCF12M	8.5	8.999	72	138.0	87.5	88.1	93	12	45	KTFS085S08SCF12M	KTFS085S08SCF12M	Cylindrical Shank 1 Flat
7303440	KTFS090S08SCF12M	9	9.499	76	142.0	91.5	91.8	97	12	45	KTFS090S08SCF12M	KTFS090S08SCF12M	Cylindrical Shank 1 Flat
7303551	KTFS095S08SCF12M	9.5	9.999	80	146.0	95.5	95.5	101	12	45	KTFS095S08SCF12M	KTFS095S08SCF12M	Cylindrical Shank 1 Flat
7303552	KTFS100S08SCF16M	10	10.499	84	156.0	102.5	102.2	108	16	48	KTFS100S08SCF16M	KTFS100S08SCF16M	Cylindrical Shank 1 Flat
7303553	KTFS105S08SCF16M	10.5	10.999	88	160.0	106.5	105.9	112	16	48	KTFS105S08SCF16M	KTFS105S08SCF16M	Cylindrical Shank 1 Flat
7303554	KTFS110S08SCF16M	11	11.499	92	164.0	110.5	109.6	116	16	48	KTFS110S08SCF16M	KTFS110S08SCF16M	Cylindrical Shank 1 Flat
7303555	KTFS115S08SCF16M	11.5	11.999	96	168.0	114.5	113.3	120	16	48	KTFS115S08SCF16M	KTFS115S08SCF16M	Cylindrical Shank 1 Flat
7303556	KTFS120S08SCF16M	12	12.499	100	172.0	118.5	117	124	16	48	KTFS120S08SCF16M	KTFS120S08SCF16M	Cylindrical Shank 1 Flat
7303557	KTFS125S08SCF16M	12.5	12.999	104	176.0	122.5	120.8	128	16	48	KTFS125S08SCF16M	KTFS125S08SCF16M	Cylindrical Shank 1 Flat
7303558	KTFS130S08SCF16M	13	13.499	108	180.0	126.5	124.5	132	16	48	KTFS130S08SCF16M	KTFS130S08SCF16M	Cylindrical Shank 1 Flat
7303559	KTFS135S08SCF16M	13.5	13.999	112	184.0	130.5	128.2	136	16	48	KTFS135S08SCF16M	KTFS135S08SCF16M	Cylindrical Shank 1 Flat
7303560	KTFS140S08SCF16M	14	14.499	116	188.0	134.5	131.9	140	16	48	KTFS140S08SCF16M	KTFS140S08SCF16M	Cylindrical Shank 1 Flat
7303561	KTFS145S08SCF16M	14.5	14.999	120	192.0	138.5	135.6	144	16	48	KTFS145S08SCF16M	KTFS145S08SCF16M	Cylindrical Shank 1 Flat
7303562	KTFS150S08SCF20M	15	15.999	128	205.0	149.5	146.3	155	20	50	KTFS150S08SCF20M	KTFS150S08SCF20M	Cylindrical Shank 1 Flat
7303563	KTFS160S08SCF20M	16	16.999	136	213.0	157.5	153.7	163	20	50	KTFS160S08SCF20M	KTFS160S08SCF20M	Cylindrical Shank 1 Flat
7303564	KTFS170S08SCF20M	17	17.999	144	221.0	165.5	161.1	171	20	50	KTFS170S08SCF20M	KTFS170S08SCF20M	Cylindrical Shank 1 Flat
7303565	KTFS180S08SCF25M	18	18.999	152	238.0	176.5	171.6	182	25	56	KTFS180S08SCF25M	KTFS180S08SCF25M	Cylindrical Shank 1 Flat
7303566	KTFS190S08SCF25M	19	19.999	160	246.0	184.5	179	190	25	56	KTFS190S08SCF25M	KTFS190S08SCF25M	Cylindrical Shank 1 Flat
7303567	KTFS200S08SCF25M	20	20.999	168	254.0	192.5	186.4	198	25	56	KTFS200S08SCF25M	KTFS200S08SCF25M	Cylindrical Shank 1 Flat
7303568	KTFS210S08SCF25M	21	21.999	176	262.0	200.5	193.8	206	25	56	KTFS210S08SCF25M	KTFS210S08SCF25M	Cylindrical Shank 1 Flat
7303569	KTFS220S08SCF25M	22	22.999	184	270.0	208.5	201.2	214	25	56	KTFS220S08SCF25M	KTFS220S08SCF25M	Cylindrical Shank 1 Flat
7303570	KTFS230S08SCF25M	23	23.999	192	278.0	216.5	208.7	222	25	56	KTFS230S08SCF25M	KTFS230S08SCF25M	Cylindrical Shank 1 Flat
7303581	KTFS240S08SCF25M	24	24.999	200	286.0	224.5	216.1	230	25	56	KTFS240S08SCF25M	KTFS240S08SCF25M	Cylindrical Shank 1 Flat
7303582	KTFS250S08SCF25M	25	25.999	208	294.0	232.5	223.5	238	25	56	KTFS250S08SCF25M	KTFS250S08SCF25M	Cylindrical Shank 1 Flat

Technical documents

KenTIP FS — Spring 2026 Innovations, pages 38–51

PDF · English

KenTIP FS — Spring 2026 Innovations, pages 38–51 (PDF)

KenTIP FS — Spring 2026 native Metric edition, pages 44–50

PDF · English

KenTIP FS — Spring 2026 native Metric edition, pages 44–50 (PDF)
