WIDIA WCE4 W401 Square End Mill — Weldon — Metric
WIDIA WCE4 W401 Square End Mill — Weldon — Metric
Pricing by quote
WIDIA WCE4 W401 metric square end mills feature 4 flutes and Weldon shanks. Compare cutting diameter and length in the manufacturer specifications, then request a quote for the required configuration.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Cutting diameter D1 [mm] | Shank diameter D [mm] | Maximum cutting depth AP1MAX [mm] | Overall length L [mm] | ISO catalog number | Grade | Flutes | Shank style |
|---|---|---|---|---|---|---|---|---|---|
| 6945510 | W401M03003SZW | 3 | 6 | 8 | 57 | W401M03003SZW | WU20PE | 4 | Weldon |
| 6945541 | W401M04003SZW | 4 | 6 | 11 | 57 | W401M04003SZW | WU20PE | 4 | Weldon |
| 6945542 | W401M05003SZW | 5 | 6 | 13 | 57 | W401M05003SZW | WU20PE | 4 | Weldon |
| 6945543 | W401M06003SZW | 6 | 6 | 13 | 57 | W401M06003SZW | WU20PE | 4 | Weldon |
| 6945562 | W401M08004SZW | 8 | 8 | 19 | 63 | W401M08004SZW | WU20PE | 4 | Weldon |
| 6945563 | W401M10005SZW | 10 | 10 | 22 | 72 | W401M10005SZW | WU20PE | 4 | Weldon |
| 6945690 | W401M12006SZW | 12 | 12 | 26 | 83 | W401M12006SZW | WU20PE | 4 | Weldon |
| 6945691 | W401M16008SZW | 16 | 16 | 32 | 92 | W401M16008SZW | WU20PE | 4 | Weldon |
| 6945692 | W401M20009SZW | 20 | 20 | 38 | 104 | W401M20009SZW | WU20PE | 4 | Weldon |
Technical documents
Compare With Similar Items
| Product |
|
|
|
|---|---|---|---|
| Description | WIDIA WCE4 W401 metric square end mills feature 4 flutes and Weldon shanks. Compare cutting diameter and length in the manufacturer specifications, then request a quote for the required configuration. |
WIDIA WCE4 W401 metric square end mills feature 4 flutes and straight cylindrical shanks. Compare cutting diameter and length in the manufacturer specifications, then request a quote for the required configuration. |

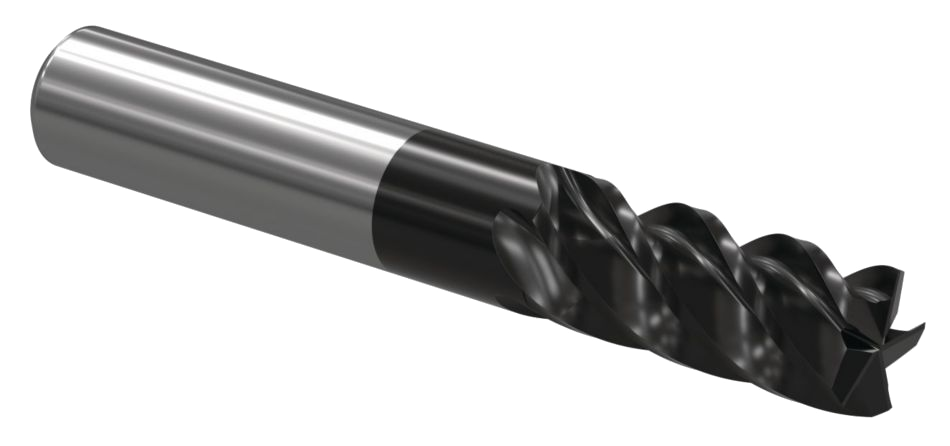

WIDIA WCE5 W501 metric square end mills feature 5 flutes and straight cylindrical shanks in a short design. Compare cutting diameter and length in the manufacturer specifications, then request a quote for the required configuration. |
