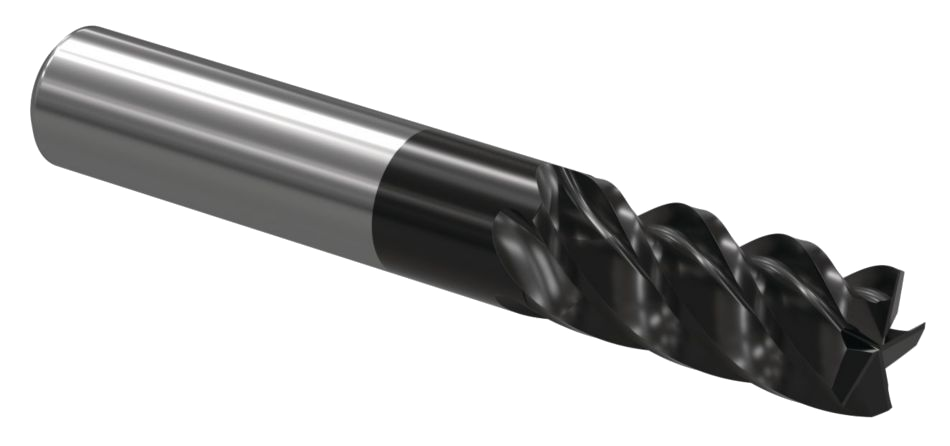

WIDIA WCE5 Square End Mill — Cylindrical — Short — Metric
WIDIA WCE5 Square End Mill — Cylindrical — Short — Metric
Pricing by quote
WIDIA WCE5 W501 metric square end mills feature 5 flutes and straight cylindrical shanks in a short design. Compare cutting diameter and length in the manufacturer specifications, then request a quote for the required configuration.
…
Availability confirmed with your quote.
Technical Specifications
Tool configurations
| Article ID | Configuration | Cutting diameter D1 [mm] | Shank diameter D [mm] | Maximum cutting depth AP1MAX [mm] | Overall length L [mm] | ISO catalog number | Grade | Flutes | Shank style |
|---|---|---|---|---|---|---|---|---|---|
| 7109642 | W501M2500ASZT | 25 | 25 | 50 | 121 | W501M2500ASZT | WU20PE | 5 | Cylindrical |
| 7109237 | W501M04003SZT | 4 | 6 | 11 | 57 | W501M04003SZT | WU20PE | 5 | Cylindrical |
| 7109238 | W501M05003SZT | 5 | 6 | 13 | 57 | W501M05003SZT | WU20PE | 5 | Cylindrical |
| 7109239 | W501M06003SZT | 6 | 6 | 13 | 57 | W501M06003SZT | WU20PE | 5 | Cylindrical |
| 7108706 | W501M08004SZT | 8 | 8 | 19 | 63 | W501M08004SZT | WU20PE | 5 | Cylindrical |
| 7108707 | W501M10005SZT | 10 | 10 | 22 | 72 | W501M10005SZT | WU20PE | 5 | Cylindrical |
| 7109599 | W501M12006SZT | 12 | 12 | 26 | 83 | W501M12006SZT | WU20PE | 5 | Cylindrical |
| 7109600 | W501M16008SZT | 16 | 16 | 32 | 92 | W501M16008SZT | WU20PE | 5 | Cylindrical |
| 7109641 | W501M20009SZT | 20 | 20 | 38 | 104 | W501M20009SZT | WU20PE | 5 | Cylindrical |
