Dosatron mixer for coolant dilution

Dosatron Mixer .2–2% Volumetric Coolant Mixer

Regular price $800.79
Sale price $800.79 Regular price

Technical Specifications

Advantages

Micro-Dosing Precision
Specifically calibrated for the 0.2% to 2% range, helping eliminate the difficulty of manually measuring small amounts of concentrate for large tanks.

Chemical Cost Control
Ideal for high-value additives and rust inhibitors where even slight over-mixing can create unnecessary annual chemical costs.

Pressure-Independent Performance
The volumetric piston helps keep the mix ratio consistent despite water-pressure fluctuations from 4.3 to 85 PSI.

Infrastructure Ready
Operates without electricity for straightforward installation on wash bays, transfer carts, or central fluid lines.

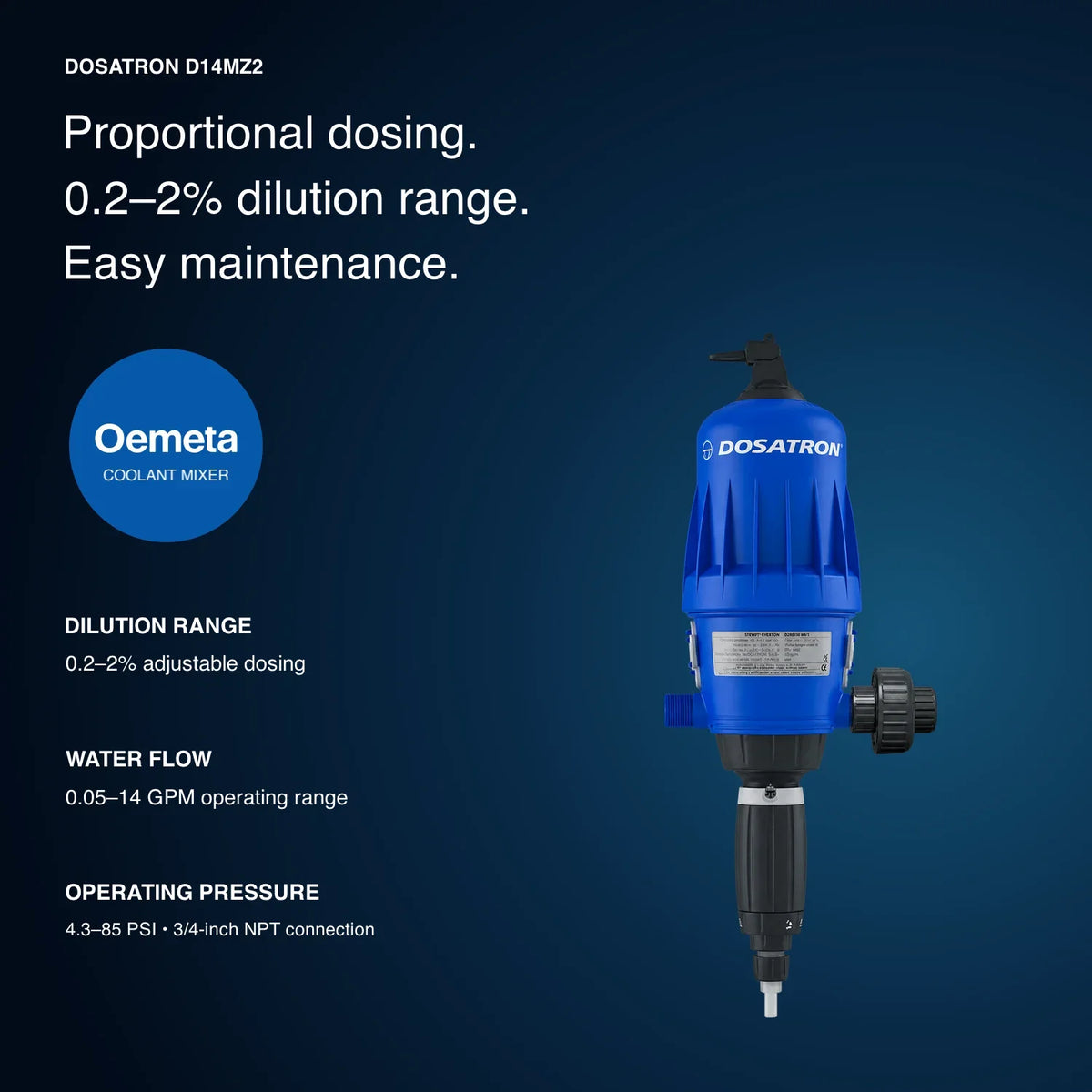

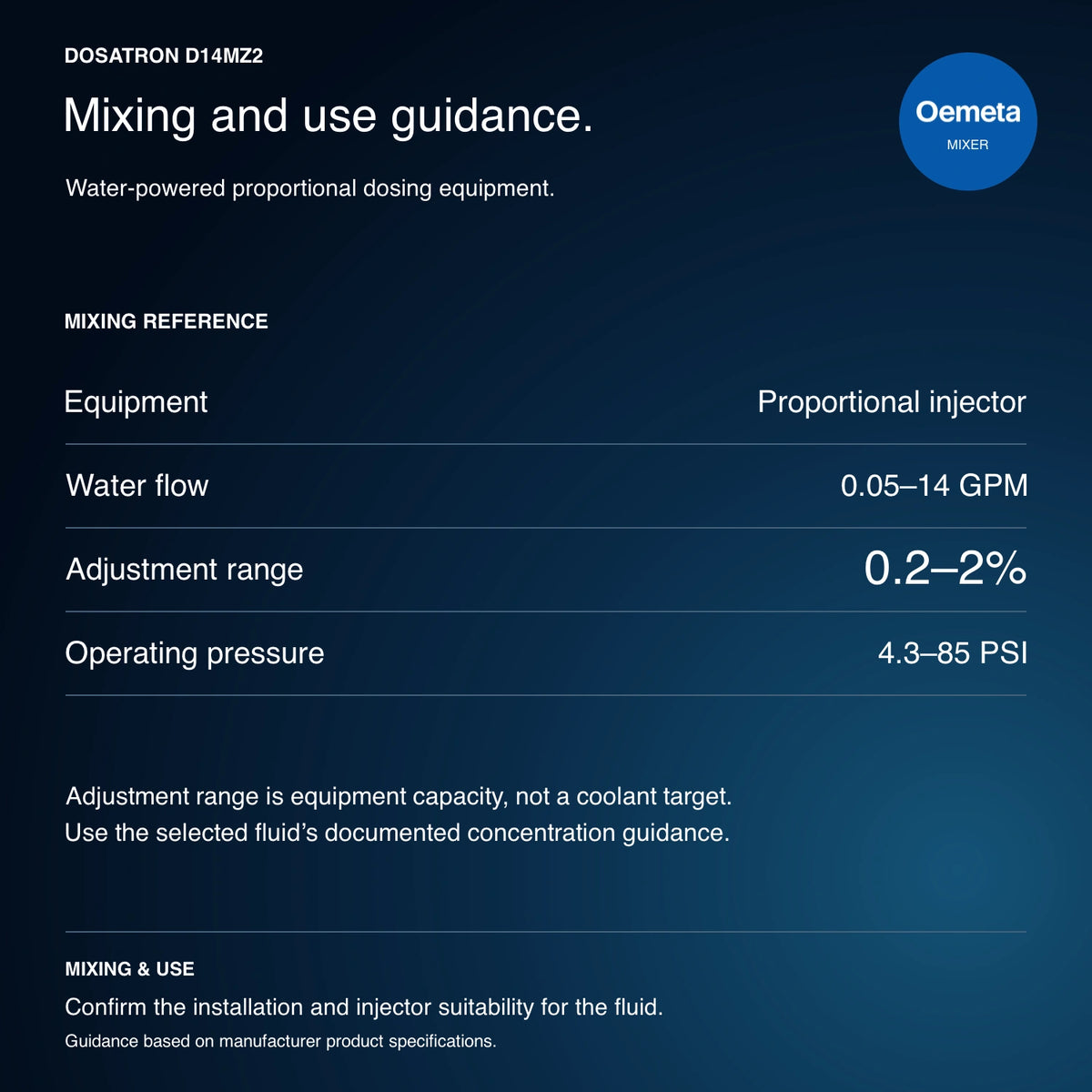

Technical Overview

  • Model: D14MZ2 (Standard Low-Range Model)
  • Dosing Range: 0.2% – 2% (1:500 – 1:50)
  • Flow Rate: 0.05 to 14 GPM (Gallons Per Minute)
  • Operating Pressure: 4.3 – 85 PSI
  • Housing: Chemical-Resistant Polypropylene
  • Connection: 3/4" NPT
  • Adjustment: External Tool-Free Dial

Why .2–2%?
Many industrial fluids—such as washing detergents and short-term rust inhibitors—require very lean ratios to function correctly without leaving sticky residues. Standard coolant mixers often lack the resolution to dial in "1.5%" accurately. The D14MZ2 specializes in this range, using a finer piston stroke to ensure that your wash water or dip tank is chemically balanced, preventing both product waste and residue issues on finished parts.

Applications

  • Rust Preventative (RP) Dip Tanks

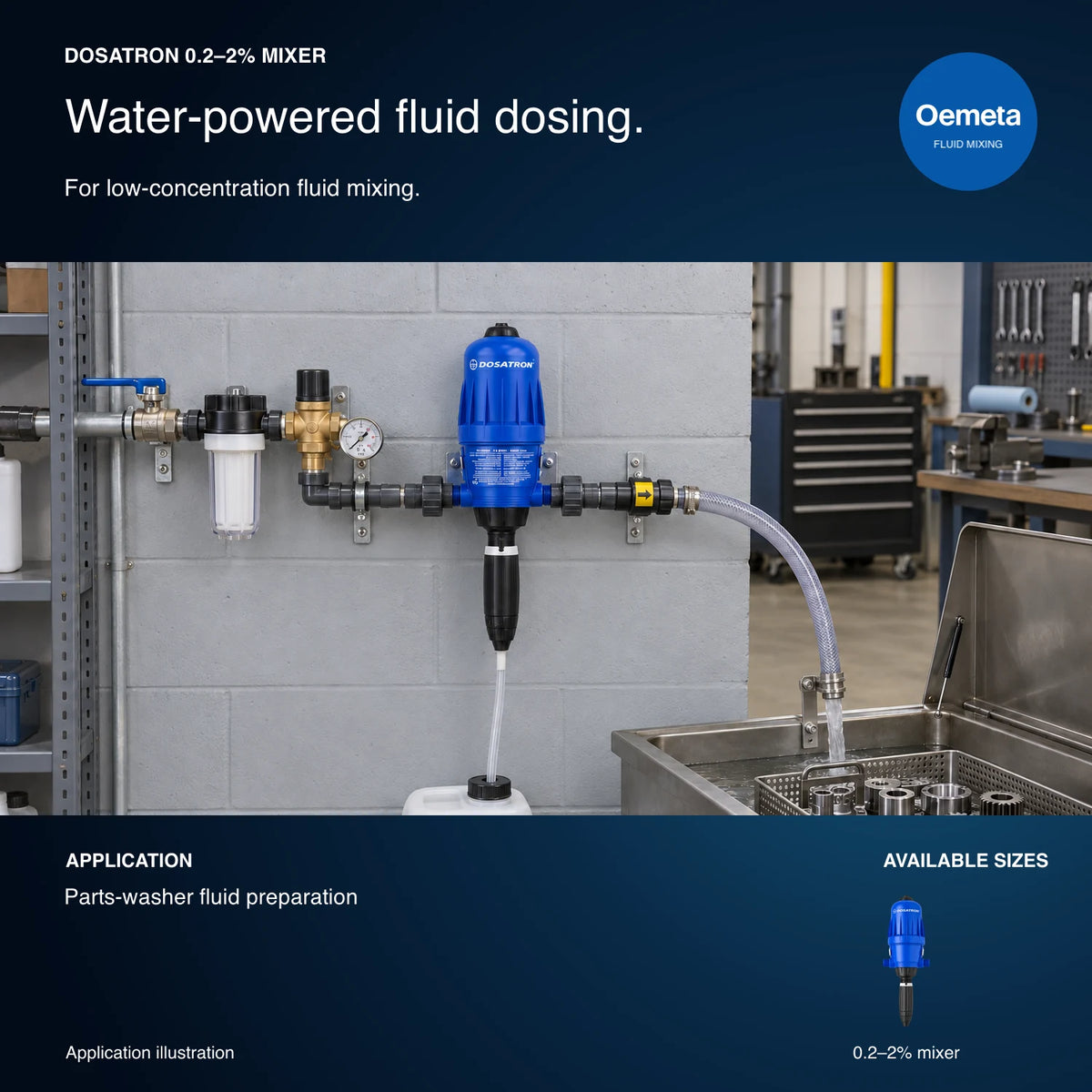

  • Parts Washer Detergent Dosing
  • Coolant Additive Injection (Biocides/pH Adjusters)
  • Surface Treatment Fluids
  • Lean Coolant Top-Off (for systems running <2%)

Compare With Similar Items

Product
Description

The industry-standard precision dosing pump for low-concentration fluids. The Dosatron D14MZ2 is a water-powered, volumetric mixer designed to deliver ultra-precise ratios between 0.2% and 2%. While standard mixers handle bulk coolant, this specialized unit is engineered for the cost-effective management of rust preventatives, parts washer detergents, and coolant additives, ensuring that expensive chemicals are never over-consumed.

The definitive fluid management solution for high-volume manufacturing facilities and central coolant systems. The Dosatron D14MZ10 is a water-powered, volumetric dosing pump designed to deliver 100% consistent coolant concentration across complex piping networks. By compensating for the pressure drops and flow fluctuations common in large plants, it ensures that every machine—from the first to the last on the line—receives the exact same mix ratio, eliminating "lean/rich" variances that destroy tool life.

The precision fluid management tool for coolant makeup and light-concentration dosing. The Dosatron D14MZ5 is a water-powered, volumetric mixer designed to deliver accurate ratios between 0.5% and 5%. While the 1–10% model is the standard for fresh fills, this .5–5% unit is the preferred choice for "Makeup Fluid" stations, where operators need to add a lean mix (typically 1–3%) to compensate for evaporation without over-concentrating the sump.

The essential process security upgrade for industrial fluid management. The Dosatron DOSA-LOCK is a rugged, locking shroud designed to encase the dosage adjustment stem of your volumetric mixer. By physically preventing unauthorized personnel from altering the mix settings, it ensures that your facility's standardized coolant concentration is strictly maintained across all shifts, preventing costly chemical waste and process instability.

Industrial-grade chemical test strips specifically engineered for the rapid and accurate measurement of Oemeta coolant concentration. Unlike standard refractometers, the Easy Check system provides a precise reading of active ingredients while remaining unaffected by tramp oils or suspended solids, allowing for superior control over fluid property parameters.

Industrial-grade chemical test strips specifically engineered for the rapid measurement of water hardness in metalworking fluid sumps. Oemeta Hardness Test Strips provide the critical data needed to diagnose and prevent foaming, sticky residue, and premature tool wear by identifying calcium and magnesium levels that compromise emulsion stability.
