Dosatron mixer for coolant dilution

Dosatron Mixer .5–5% Volumetric Coolant Mixer

Regular price $1,818.16
Sale price $1,818.16 Regular price

Technical Specifications

Advantages

  • Optimized for Top-Offs: Provides superior resolution in the 1% to 3% range, making it perfect for daily coolant replenishment where a "lean" mix is required to balance out evaporation.
  • Prevent "Rich" Sumps: Using a dedicated .5–5% mixer for top-offs prevents operators from accidentally adding high-concentration fluid to an already rich sump, saving significant concentrate costs.
  • Pressure Independent: The volumetric piston engine ensures the mix ratio remains constant regardless of flow rate or pressure drops in the facility water lines.
  • Easy Adjustability: Features a simple external dial to quickly change settings from .5% (for light top-off) up to 5% (for standard machining fills or washing detergents).

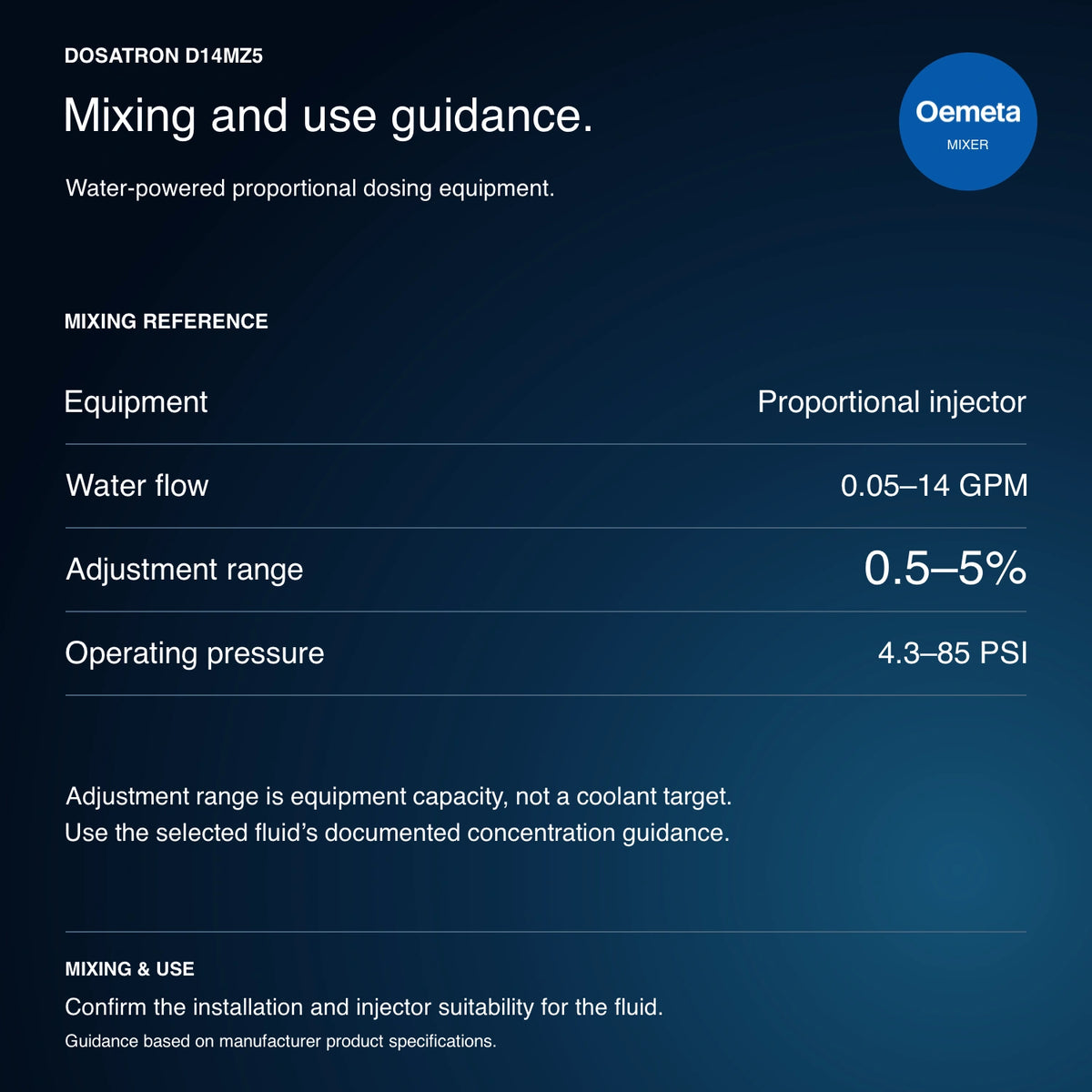

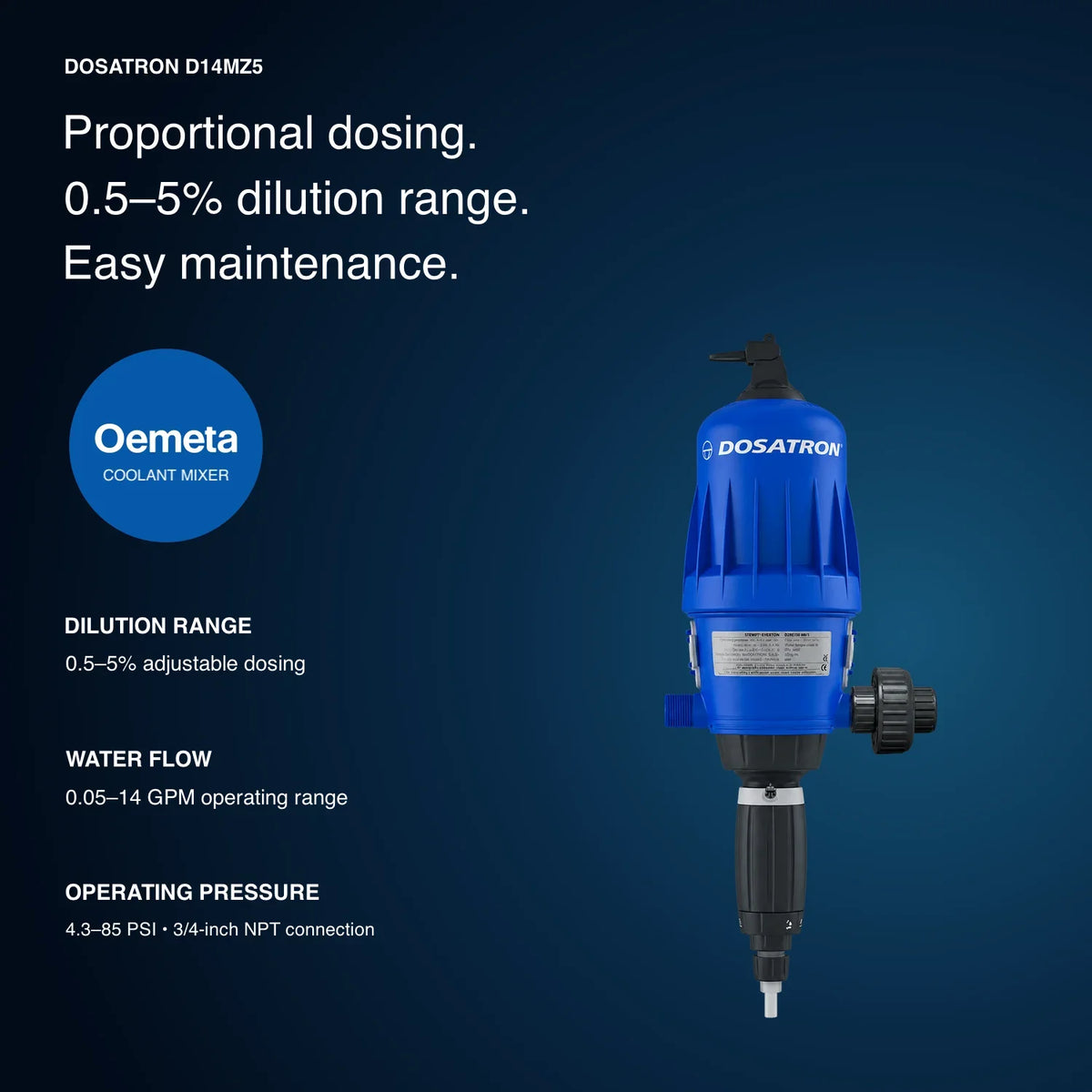

Technical Overview

  • Model: D14MZ5 (Standard Makeup/Top-Off Model)
  • Dosing Range: 0.5% – 5% (1:200 – 1:20)
  • Flow Rate: 0.05 to 14 GPM (Gallons Per Minute)
  • Operating Pressure: 4.3 – 85 PSI
  • Housing: Chemical-Resistant Polypropylene
  • Connection: 3/4" NPT
  • Adjustment: External Tool-Free Dial

The Evaporation Problem
In CNC machining, water evaporates due to heat and agitation, but the coolant concentrate remains in the sump. If you top off with a standard 7–10% mix, your concentration will spike (often to 15%+), wasting money and causing dermatitis.

The .5–5% Solution
This mixer is specifically geared to deliver the Lean Makeup Fluid (usually 1–3%) needed to bring the liquid level back up while keeping the total concentration steady at the target (e.g., 7%). It is the primary tool for cost-control in large central systems.

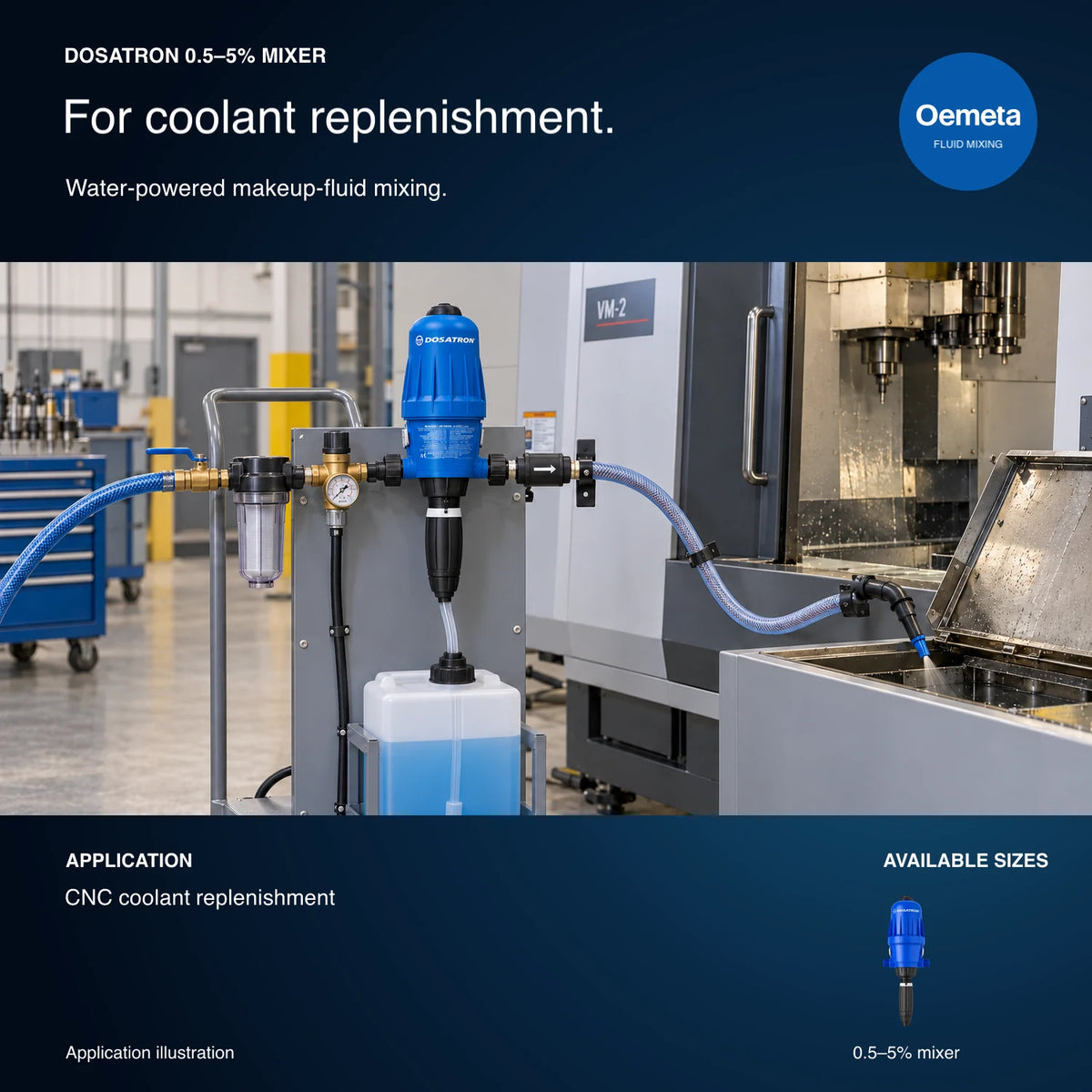

Applications

  • Coolant "Makeup" / Top-Off Carts
  • Central System Replenishment (Lean Mix)
  • Parts Washing (Detergents <5%)
  • Light-Duty Machining Fluid Mixing
  • Vibratory Finishing Compounds

Compare With Similar Items

Product
Description

The precision fluid management tool for coolant makeup and light-concentration dosing. The Dosatron D14MZ5 is a water-powered, volumetric mixer designed to deliver accurate ratios between 0.5% and 5%. While the 1–10% model is the standard for fresh fills, this .5–5% unit is the preferred choice for "Makeup Fluid" stations, where operators need to add a lean mix (typically 1–3%) to compensate for evaporation without over-concentrating the sump.

The definitive fluid management solution for high-volume manufacturing facilities and central coolant systems. The Dosatron D14MZ10 is a water-powered, volumetric dosing pump designed to deliver 100% consistent coolant concentration across complex piping networks. By compensating for the pressure drops and flow fluctuations common in large plants, it ensures that every machine—from the first to the last on the line—receives the exact same mix ratio, eliminating "lean/rich" variances that destroy tool life.

The industry-standard precision dosing pump for low-concentration fluids. The Dosatron D14MZ2 is a water-powered, volumetric mixer designed to deliver ultra-precise ratios between 0.2% and 2%. While standard mixers handle bulk coolant, this specialized unit is engineered for the cost-effective management of rust preventatives, parts washer detergents, and coolant additives, ensuring that expensive chemicals are never over-consumed.

The essential process security upgrade for industrial fluid management. The Dosatron DOSA-LOCK is a rugged, locking shroud designed to encase the dosage adjustment stem of your volumetric mixer. By physically preventing unauthorized personnel from altering the mix settings, it ensures that your facility's standardized coolant concentration is strictly maintained across all shifts, preventing costly chemical waste and process instability.

Industrial-grade chemical test strips specifically engineered for the rapid and accurate measurement of Oemeta coolant concentration. Unlike standard refractometers, the Easy Check system provides a precise reading of active ingredients while remaining unaffected by tramp oils or suspended solids, allowing for superior control over fluid property parameters.

Industrial-grade chemical test strips specifically engineered for the rapid measurement of water hardness in metalworking fluid sumps. Oemeta Hardness Test Strips provide the critical data needed to diagnose and prevent foaming, sticky residue, and premature tool wear by identifying calcium and magnesium levels that compromise emulsion stability.
