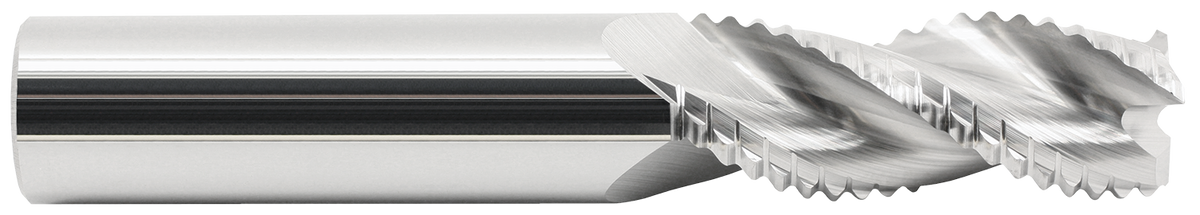

Representative series image. Refer to the selected EDP for exact specifications.
GARR TOOL ARC Roughing End Mill — Inch
GARR TOOL ARC Roughing End Mill — Inch
Three-flute, center-cutting knuckle rougher/ripper for aluminum, extruded aluminum, and other non-ferrous materials. Solid submicron-grain carbide with a bright finish.
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL ARC Roughing End Mill — Inch
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- d3
- Neck diameter
- l3
- Reach
- l1
- Overall length
- c
- Chamfer length

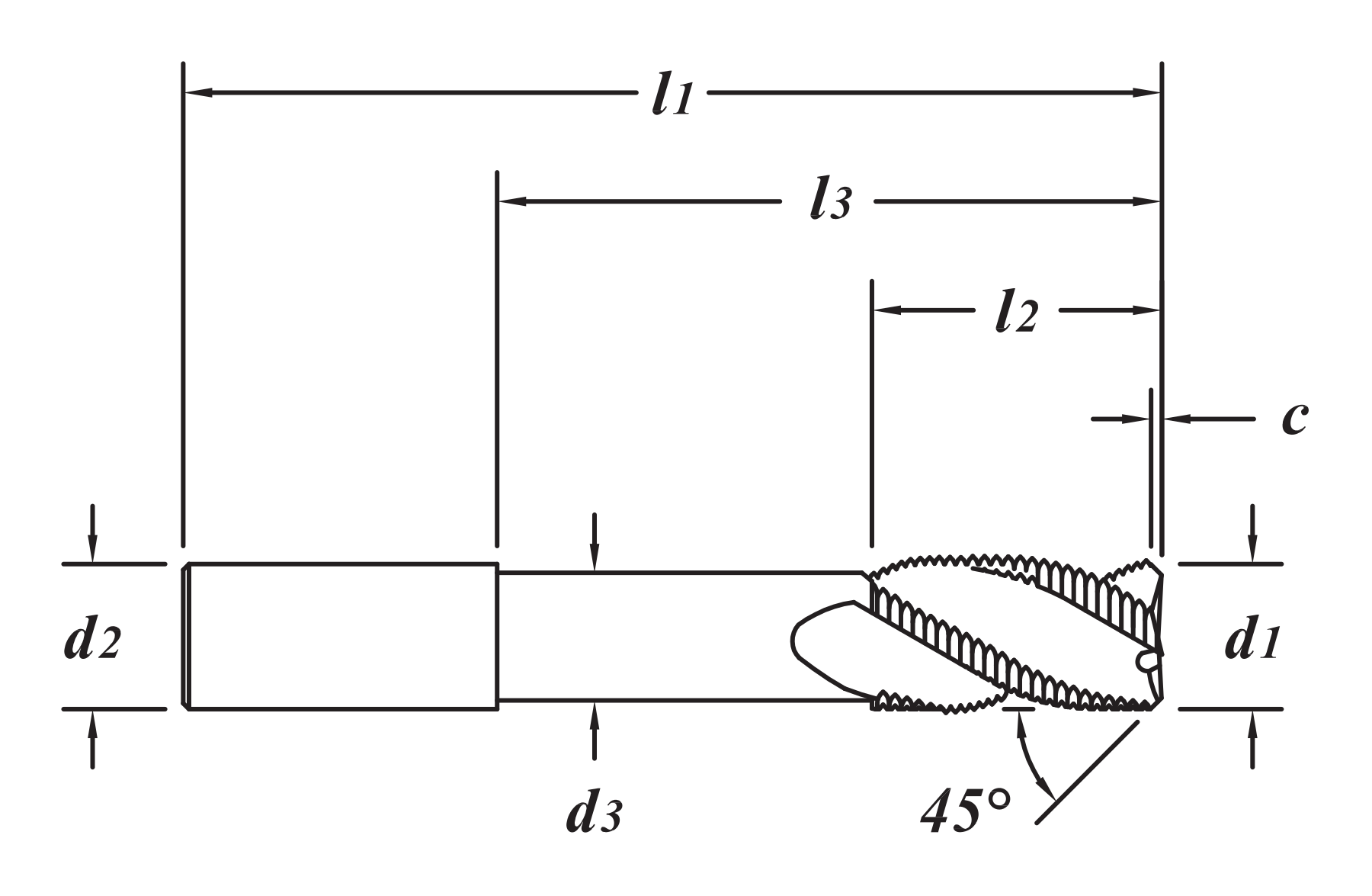

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (in) | Shank diameter d2 (in) | Length of cut l2 (in) | Neck diameter d3 (in) | Neck length (in) | Reach l3 (in) | Overall length l1 (in) | Chamfer length c (in) | Flutes | End type | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 46231 | 3/16 | 3/16 | 5/16 | - | - | - | 2 | .015 | 3 | CMFR | 0.0280 |
| 46234 | 3/16 | 3/16 | 9/16 | - | - | - | 2 | .015 | 3 | CMFR | 0.0260 |
| 46237 | 3/16 | 3/16 | 1 | - | - | - | 3 | .015 | 3 | CMFR | 0.0380 |
| 46240 | 3/16 | 3/16 | 1/2 | 0.1600 | 1.0000 | 1.5000 | 3 | .015 | 3 | CMFR | 0.0410 |
| 46252 | 1/4 | 1/4 | 3/8 | - | - | - | 2 | .020 | 3 | CMFR | 0.0470 |
| 46255 | 1/4 | 1/4 | 3/4 | - | - | - | 2-1/2 | .020 | 3 | CMFR | 0.0550 |
| 46258 | 1/4 | 1/4 | 1-1/2 | - | - | - | 4 | .020 | 3 | CMFR | 0.0850 |
| 46261 | 1/4 | 1/4 | 1 | 0.2200 | 1.0000 | 2.0000 | 4 | .020 | 3 | CMFR | 0.0860 |
| 46264 | 5/16 | 5/16 | 7/16 | - | - | - | 2 | .020 | 3 | CMFR | 0.0740 |
| 46267 | 5/16 | 5/16 | 13/16 | - | - | - | 2-1/2 | .020 | 3 | CMFR | 0.0860 |
| 46270 | 5/16 | 5/16 | 1-1/2 | - | - | - | 4 | .020 | 3 | CMFR | 0.1300 |
| 46273 | 5/16 | 5/16 | 1 | 0.2850 | 1.0000 | 2.0000 | 4 | .020 | 3 | CMFR | 0.1300 |
| 46291 | 3/8 | 3/8 | 1/2 | - | - | - | 2 | .025 | 3 | CMFR | 0.1000 |
| 46294 | 3/8 | 3/8 | 7/8 | - | - | - | 2-1/2 | .025 | 3 | CMFR | 0.1200 |
| 46297 | 3/8 | 3/8 | 1-1/4 | - | - | - | 3 | .025 | 3 | CMFR | 0.0880 |
| 46300 | 3/8 | 3/8 | 1-5/8 | - | - | - | 4 | .025 | 3 | CMFR | 0.1900 |
| 46303 | 3/8 | 3/8 | 1 | 0.3450 | 1.0000 | 2.0000 | 4 | .025 | 3 | CMFR | 0.1900 |
| 46306 | 3/8 | 3/8 | 1-1/2 | 0.3450 | 2.5000 | 4.0000 | 6 | .025 | 3 | CMFR | 0.2800 |
| 46339 | 1/2 | 1/2 | 5/8 | - | - | - | 2-1/2 | .030 | 3 | CMFR | 0.2500 |
| 46342 | 1/2 | 1/2 | 1-1/4 | - | - | - | 3 | .030 | 3 | CMFR | 0.2700 |
| 46345 | 1/2 | 1/2 | 2 | - | - | - | 4 | .030 | 3 | CMFR | 0.3000 |
| 46348 | 1/2 | 1/2 | 1 | 0.4700 | 1.0000 | 2.0000 | 4 | .030 | 3 | CMFR | 0.3900 |
| 46351 | 1/2 | 1/2 | 1-1/2 | 0.4700 | 2.5000 | 4.0000 | 6 | .030 | 3 | CMFR | 0.5200 |
| 46354 | 5/8 | 5/8 | 3/4 | - | - | - | 3 | .035 | 3 | CMFR | 0.4300 |
| 46357 | 5/8 | 5/8 | 1-1/4 | - | - | - | 3-1/2 | .035 | 3 | CMFR | 0.4600 |
| 46360 | 5/8 | 5/8 | 1-5/8 | - | - | - | 4 | .035 | 3 | CMFR | 0.5500 |
| 46363 | 5/8 | 5/8 | 1 | 0.5950 | 1.0000 | 2.0000 | 4 | .035 | 3 | CMFR | 0.5900 |
| 46366 | 5/8 | 5/8 | 1-1/2 | 0.5950 | 1.5000 | 3.0000 | 6 | .035 | 3 | CMFR | 0.8300 |
| 46369 | 5/8 | 5/8 | 1-1/2 | 0.5950 | 2.5000 | 4.0000 | 6 | .035 | 3 | CMFR | 0.8200 |
| 46387 | 3/4 | 3/4 | 1-5/8 | - | - | - | 4 | .040 | 3 | CMFR | 0.8200 |
| 46390 | 3/4 | 3/4 | 2-1/4 | - | - | - | 5 | .040 | 3 | CMFR | 0.9900 |
| 46393 | 3/4 | 3/4 | 7/8 | 0.7200 | 1.1250 | 2.0000 | 4 | .040 | 3 | CMFR | 0.8200 |
| 46396 | 3/4 | 3/4 | 1-1/2 | 0.7200 | 1.5000 | 3.0000 | 6 | .040 | 3 | CMFR | 1.3100 |
| 46399 | 3/4 | 3/4 | 1-1/2 | 0.7200 | 2.5000 | 4.0000 | 6 | .040 | 3 | CMFR | 1.2900 |
| 46414 | 1 | 1 | 1-1/2 | - | - | - | 4 | .040 | 3 | CMFR | 1.3900 |
| 46417 | 1 | 1 | 2 | - | - | - | 5 | .040 | 3 | CMFR | 1.7100 |
| 46420 | 1 | 1 | 2 | 0.9700 | 1.5000 | 3.5000 | 6 | .040 | 3 | CMFR | 2.0700 |
| 46423 | 1 | 1 | 2 | 0.9700 | 2.5000 | 4.5000 | 7 | .040 | 3 | CMFR | 2.5300 |
No EDP matches. Clear the search to see this series.
Technical overview
Applications & compatible materials
- Milling
- Roughing
- Aluminum
- Non-Ferrous Materials
- Extruded Aluminum
- Aluminum Alloys
Technical documents
Cutting parameters, setup guidance, and the series catalog.
