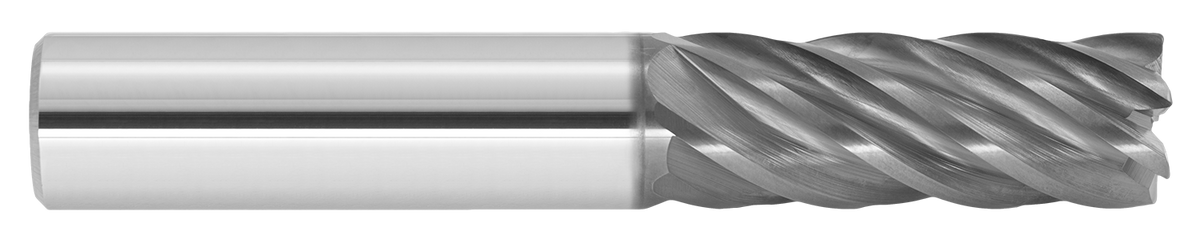

Representative series image. Refer to the selected EDP for exact specifications.
GARR TOOL VS6 Roughing End Mill — Inch
GARR TOOL VS6 Roughing End Mill — Inch
Six-flute, square-end roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating, staggered flutes, and a center-cutting design.
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL VS6 Roughing End Mill — Inch
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- d3
- Neck diameter
- l3
- Reach
- l1
- Overall length
- r
- Corner radius
Representative manufacturer schematic for dimension placement; it does not show the exact profile of every EDP.
| EDP | Cutting diameter d1 (in) | Shank diameter d2 (in) | Length of cut l2 (in) | Neck diameter d3 (in) | Neck length (in) | Reach l3 (in) | Overall length l1 (in) | Flutes | End type | Coating | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 60100 | 1/4 | 1/4 | 3/4 | - | - | - | 2-1/2 | 6 | SQ | ALTIN | 0.0600 |
| 60108 | 3/8 | 3/8 | 7/8 | - | - | - | 2-1/2 | 6 | SQ | ALTIN | 0.1400 |
| 60109 | 3/8 | 3/8 | 1/2 | - | - | - | 2 | 6 | SQ | ALTIN | 0.1200 |
| 60116 | 1/2 | 1/2 | 1-1/4 | - | - | - | 3 | 6 | SQ | ALTIN | 0.2700 |
| 60130 | 1/2 | 1/2 | 2-1/8 | - | - | - | 4 | 6 | SQ | ALTIN | 0.3400 |
| 60131 | 1/2 | 1/2 | 5/8 | - | - | - | 2-1/2 | 6 | SQ | ALTIN | 0.2700 |
| 60135 | 1/2 | 1/2 | 1 | - | - | - | 3 | 6 | SQ | ALTIN | 0.3100 |
| 60137 | 1/2 | 1/2 | 1-1/2 | - | - | - | 4 | 6 | SQ | ALTIN | 0.4000 |
| 60138 | 5/8 | 5/8 | 1-1/4 | - | - | - | 3-1/2 | 6 | SQ | ALTIN | 0.5100 |
| 60141 | 5/8 | 5/8 | 3/4 | - | - | - | 3 | 6 | SQ | ALTIN | 0.4900 |
| 60148 | 5/8 | 5/8 | 1-5/8 | - | - | - | 4 | 6 | SQ | ALTIN | 0.5600 |
| 60149 | 3/4 | 3/4 | 3 | - | - | - | 6 | 6 | SQ | ALTIN | 1.2000 |
| 60152 | 3/4 | 3/4 | 1-1/2 | - | - | - | 4 | 6 | SQ | ALTIN | 0.8500 |
| 60155 | 1 | 1 | 1-1/4 | 0.9830 | 2.8750 | 4.1250 | 7 | 6 | SQ | ALTIN | 2.7700 |
| 60190 | 1/2 | 1/2 | 1-5/8 | - | - | - | 4 | 6 | SQ | ALTIN | 0.3700 |
No EDP matches. Clear the search to see this series.
Technical overview
Applications & compatible materials
- Milling
- High efficiency milling
- Inconel
- pH materials
- Titanium
- Tool Steels >40Rc
