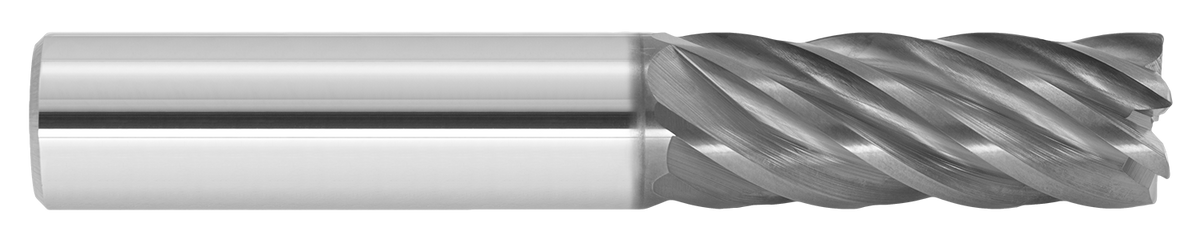

GARR TOOL VR6 Roughing End Mill — Inch

Name: GARR TOOL VR6 Roughing End Mill — Inch — 1/4 / 3/4 / 0.0100
Brand: GARR TOOL
SKU: 60102

GARR TOOL VR6 Roughing End Mill — Inch

Pricing by quote

Six-flute, corner-radius roughing and finishing end mill for Inconel, precipitation-hardening alloys, titanium, and tool steels above 40 HRC. Solid submicron-grain carbide with AlTiN coating, staggered flutes, and a center-cutting design.

SKU: 60102

Availability confirmed with your quote.

GARR TOOL VR6 Roughing End Mill — Inch

Pricing by quote

Technical Specifications

GARR TOOL VR6 Roughing End Mill — Inch

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

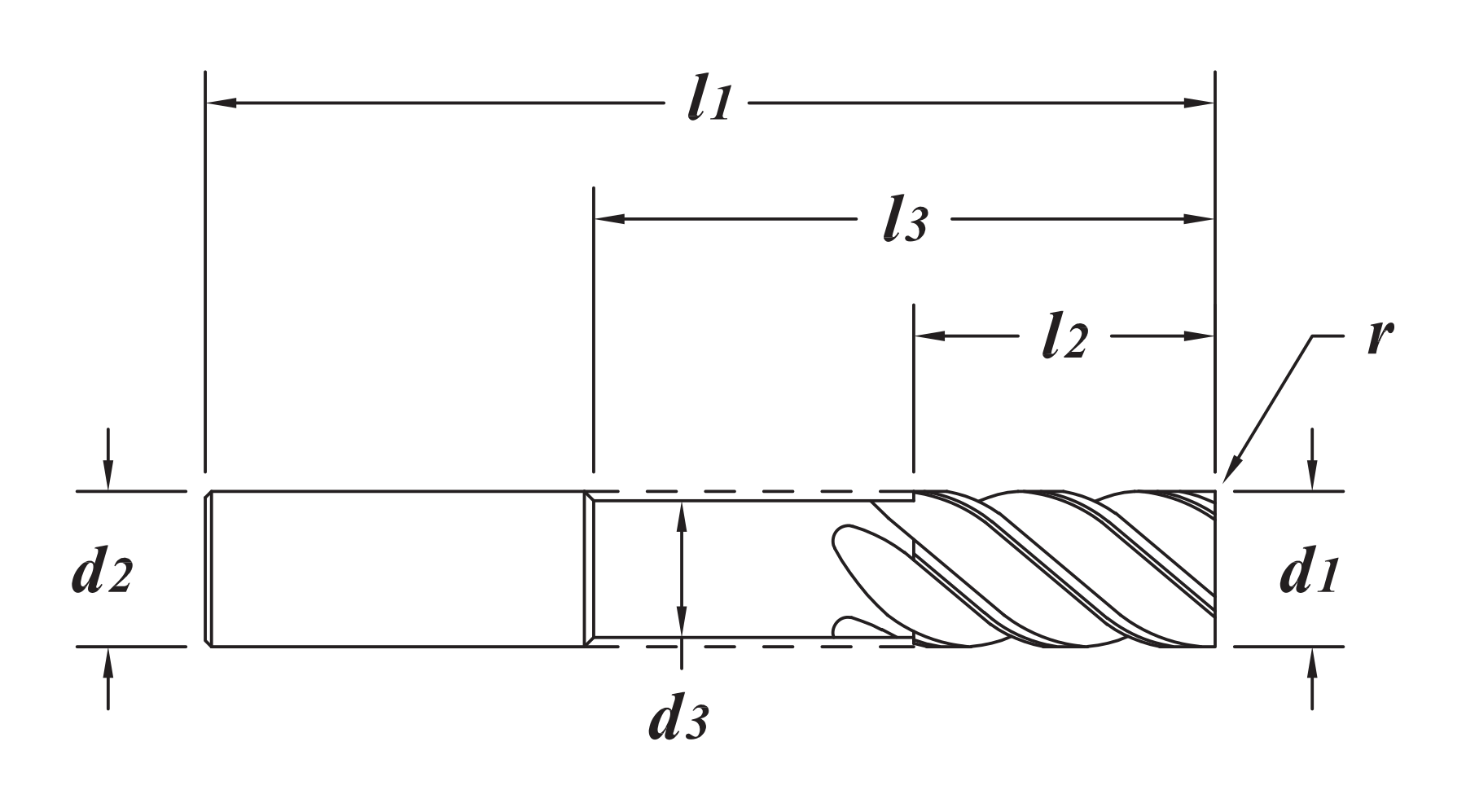

GARR TOOL VR6 Roughing End Mill — Inch — manufacturer dimension reference drawing — **Dimension reference**
d₁
Cutting diameter
d₂
Shank diameter
l₂
Length of cut
d₃
Neck diameter
l₃
Reach
l₁
Overall length
r
Corner radius
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: inches. Values preserved from GARR.
EDP	Cutting diameter d₁ (in)	Shank diameter d₂ (in)	Length of cut l₂ (in)	Overall length l₁ (in)	Corner radius r (in)	Flutes	End type	Coating	Weight (lb)
60102	1/4	1/4	3/4	2-1/2	0.0100	6	RAD	ALTIN	0.0600
60104	1/4	1/4	3/4	2-1/2	0.0150	6	RAD	ALTIN	0.0610
60105	1/4	1/4	3/4	2-1/2	0.0200	6	RAD	ALTIN	0.0600
60106	1/4	1/4	3/4	2-1/2	0.0300	6	RAD	ALTIN	0.0600
60110	3/8	3/8	7/8	2-1/2	0.0150	6	RAD	ALTIN	0.1400
60111	3/8	3/8	1/2	2	0.0200	6	RAD	ALTIN	0.1300
60112	3/8	3/8	7/8	2-1/2	0.0300	6	RAD	ALTIN	0.1300
60113	3/8	3/8	7/8	2-1/2	0.0200	6	RAD	ALTIN	0.1500
60114	3/8	3/8	7/8	2-1/2	0.0600	6	RAD	ALTIN	0.1400
60118	1/2	1/2	1-1/4	3	0.0100	6	RAD	ALTIN	0.2700
60120	1/2	1/2	1-1/4	3	0.0150	6	RAD	ALTIN	0.2700
60122	1/2	1/2	1-1/4	3	0.0200	6	RAD	ALTIN	0.2700
60124	1/2	1/2	1-1/4	3	0.0300	6	RAD	ALTIN	0.2700
60126	1/2	1/2	1-1/4	3	0.0600	6	RAD	ALTIN	0.2700
60128	1/2	1/2	1-1/4	3	0.1250	6	RAD	ALTIN	0.2700
60132	1/2	1/2	2-1/8	4	0.0100	6	RAD	ALTIN	0.3500
60133	1/2	1/2	5/8	2-1/2	0.0200	6	RAD	ALTIN	0.2700
60134	1/2	1/2	2-1/8	4	0.0200	6	RAD	ALTIN	0.3700
60136	1/2	1/2	2-1/8	4	0.0300	6	RAD	ALTIN	0.3400
60139	1/2	1/2	1-1/2	4	0.0300	6	RAD	ALTIN	0.3700
60140	5/8	5/8	1-1/4	3-1/2	0.0150	6	RAD	ALTIN	0.5200
60142	5/8	5/8	1-1/4	3-1/2	0.0300	6	RAD	ALTIN	0.5100
60143	5/8	5/8	3/4	3	0.0200	6	RAD	ALTIN	0.4900
60144	5/8	5/8	1-1/4	3-1/2	0.0600	6	RAD	ALTIN	0.5200
60145	5/8	5/8	1-1/4	3-1/2	0.0200	6	RAD	ALTIN	0.5500
60146	5/8	5/8	1-1/4	3-1/2	0.1250	6	RAD	ALTIN	0.5100
60147	3/4	3/4	1-1/2	4	0.0200	6	RAD	ALTIN	0.8400
60150	5/8	5/8	1-5/8	4	0.0300	6	RAD	ALTIN	0.5800
60151	3/4	3/4	3	6	0.0300	6	RAD	ALTIN	1.1900
60153	1	1	3	6	0.0300	6	RAD	ALTIN	2.2800
60154	3/4	3/4	1-1/2	4	0.0150	6	RAD	ALTIN	0.9200
60156	3/4	3/4	1-1/2	4	0.0300	6	RAD	ALTIN	0.8500
60157	1/2	1/2	5/8	2-1/2	0.0150	6	RAD	ALTIN	0.2600
60158	3/4	3/4	1-1/2	4	0.0600	6	RAD	ALTIN	0.5100
60159	1/2	1/2	5/8	2-1/2	0.0300	6	RAD	ALTIN	0.2700
60160	3/4	3/4	1-1/2	4	0.1250	6	RAD	ALTIN	0.8500
60184	3/8	3/8	1-1/4	3	0.0300	6	RAD	ALTIN	0.1600
60185	1/2	1/2	5/8	2-1/2	0.0100	6	RAD	ALTIN	0.2700
60186	1/2	1/2	5/8	2-1/2	0.1250	6	RAD	ALTIN	0.2700
60188	1	1	1-1/2	4	0.1250	6	RAD	ALTIN	1.6400
60189	1/2	1/2	5/8	2-1/2	0.0600	6	RAD	ALTIN	0.2600
60194	1/2	1/2	1-5/8	4	0.0300	6	RAD	ALTIN	0.3600
60196	1/2	1/2	1-5/8	4	0.0600	6	RAD	ALTIN	0.3600
60200	1/2	1/2	2-1/8	4	0.0600	6	RAD	ALTIN	0.3500
60201	1/2	1/2	1	3	0.0300	6	RAD	ALTIN	0.2900

Technical overview

Geometry

Staggered flute geometry

Construction

Solid submicron grain carbide end mill - center cutting

Coating and finish

6 Flute - Rougher/Finisher, Corner Radius, AlTiN Coating

Tolerances

flute dia. +.000-.002" (+.000-.050mm) · shank dia. h6 · radius +.001-.001" (+0.025-0.025mm)

Advantages

Vibration control
Reduces vibration for more aggressive machining resulting in less cycle times and greater productivity

High efficiency milling
Engineered for High Efficiency Milling

6 flutes for better finish and longer tool life

Applications & compatible materials

Applications

Milling
High efficiency milling

Compatible materials

Inconel
pH materials
Titanium
Tool Steels >40Rc

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 58 KB · English View PDF Cutting parameters · Metric PDF · 56 KB · English View PDF Series catalog PDF · 806 KB · English View PDF
