GARR TOOL A3 Carbide End Mill — Metric

Name: GARR TOOL A3 Carbide End Mill — Metric — 4.00 mm / 12 mm / Overall length: 50 mm · Corner radius: - · Reach: 15.0000 · Shank diameter: 6.0 mm · Neck diameter: 3.8000 · Neck length: 3.0000 · End type: SQ
Brand: GARR TOOL
SKU: 07000

Pricing by quote

Solid submicron-grain carbide end mill for aluminum. Features variable helix geometry, 3 flutes, and a center-cutting design.

Tool configuration: Overall length: 50 mm · Corner radius: - · Reach: 15.0000 · Shank diameter: 6.0 mm · Neck diameter: 3.8000 · Neck length: 3.0000 · End type: SQ

SKU: 07000

Availability confirmed with your quote.

GARR TOOL A3 Carbide End Mill — Metric

Pricing by quote

Technical Specifications

GARR TOOL A3 Carbide End Mill — Metric

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

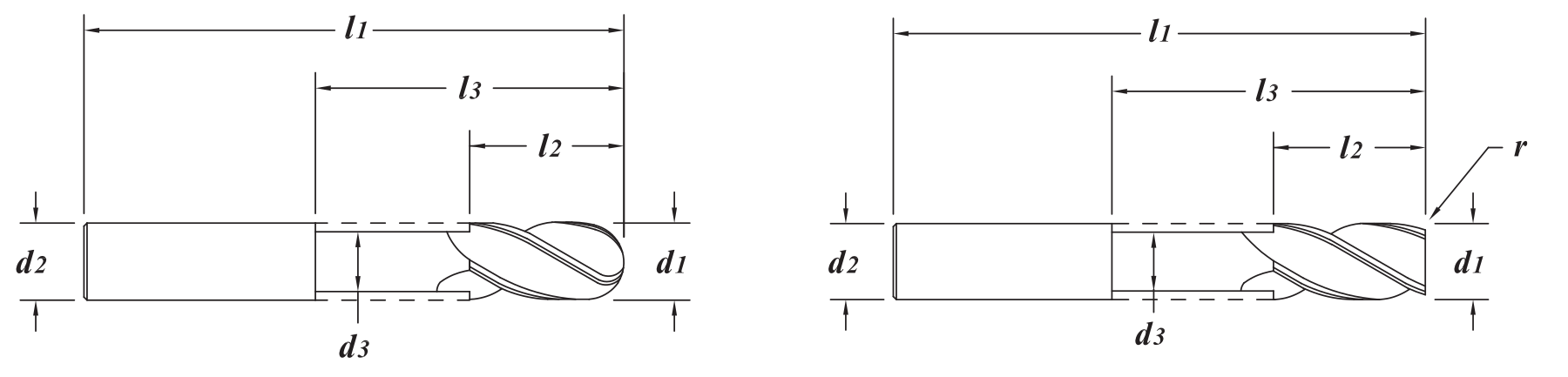

GARR TOOL A3 Carbide End Mill — Metric — manufacturer dimension reference drawing — **Dimension reference**
d₁
Cutting diameter
d₂
Shank diameter
l₂
Length of cut
d₃
Neck diameter
l₃
Reach
l₁
Overall length
r
Corner radius
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Neck diameter d₃ (mm)	Neck length (mm)	Reach l₃ (mm)	Overall length l₁ (mm)	Corner radius r (mm)	Flutes	End type	Weight (lb)
07000	4.00 mm	6.0 mm	12 mm	3.8000	3.0000	15.0000	50 mm	-	3	SQ	0.0400
07001	4.00 mm	6.0 mm	12 mm	3.8000	3.0000	15.0000	50 mm	0.2000	3	RAD	0.0400
07002	4.00 mm	6.0 mm	12 mm	3.8000	3.0000	15.0000	50 mm	0.5000	3	RAD	0.0400
07003	4.00 mm	6.0 mm	12 mm	3.8000	3.0000	15.0000	50 mm	1.0000	3	RAD	0.0400
07009	5.00 mm	6.0 mm	16 mm	4.7000	10.0000	26.0000	65 mm	-	3	SQ	0.0500
07010	5.00 mm	6.0 mm	16 mm	4.7000	10.0000	26.0000	65 mm	0.2000	3	RAD	0.0500
07011	5.00 mm	6.0 mm	16 mm	4.7000	10.0000	26.0000	65 mm	0.5000	3	RAD	0.0500
07012	5.00 mm	6.0 mm	16 mm	4.7000	10.0000	26.0000	65 mm	1.0000	3	RAD	0.0500
07013	6.00 mm	6.0 mm	19 mm	5.7000	7.0000	26.0000	65 mm	-	3	SQ	0.0500
07014	6.00 mm	6.0 mm	19 mm	5.7000	7.0000	26.0000	65 mm	0.2000	3	RAD	0.0600
07015	6.00 mm	6.0 mm	19 mm	5.7000	7.0000	26.0000	65 mm	0.5000	3	RAD	0.0500
07016	6.00 mm	6.0 mm	19 mm	5.7000	7.0000	26.0000	65 mm	1.0000	3	RAD	0.0500
07017	6.00 mm	6.0 mm	19 mm	5.7000	7.0000	26.0000	65 mm	1.5000	3	RAD	0.0500
07018	6.00 mm	6.0 mm	19 mm	5.7000	7.0000	26.0000	65 mm	2.0000	3	RAD	0.0500
07019	6.00 mm	6.0 mm	19 mm	5.7000	7.0000	26.0000	65 mm	-	3	BALL	0.0600
07033	8.00 mm	8.0 mm	19 mm	7.4000	7.0000	26.0000	65 mm	-	3	SQ	0.1100
07034	8.00 mm	8.0 mm	19 mm	7.4000	7.0000	26.0000	65 mm	0.2000	3	RAD	0.1000
07035	8.00 mm	8.0 mm	19 mm	7.4000	7.0000	26.0000	65 mm	0.5000	3	RAD	0.1100
07036	8.00 mm	8.0 mm	19 mm	7.4000	7.0000	26.0000	65 mm	1.0000	3	RAD	0.1100
07037	8.00 mm	8.0 mm	19 mm	7.4000	7.0000	26.0000	65 mm	1.5000	3	RAD	0.1100
07038	8.00 mm	8.0 mm	19 mm	7.4000	7.0000	26.0000	65 mm	2.0000	3	RAD	0.1100
07039	8.00 mm	8.0 mm	19 mm	7.4000	7.0000	26.0000	65 mm	3.0000	3	RAD	0.1100
07040	8.00 mm	8.0 mm	19 mm	7.4000	7.0000	26.0000	65 mm	-	3	BALL	0.1100
07068	10.00 mm	10.0 mm	22 mm	9.4000	8.0000	30.0000	70 mm	-	3	SQ	0.1600
07069	10.00 mm	10.0 mm	22 mm	9.4000	8.0000	30.0000	70 mm	0.2000	3	RAD	0.1700
07070	10.00 mm	10.0 mm	22 mm	9.4000	8.0000	30.0000	70 mm	0.5000	3	RAD	0.1700
07071	10.00 mm	10.0 mm	22 mm	9.4000	8.0000	30.0000	70 mm	1.0000	3	RAD	0.1700
07072	10.00 mm	10.0 mm	22 mm	9.4000	8.0000	30.0000	70 mm	1.5000	3	RAD	0.1700
07073	10.00 mm	10.0 mm	22 mm	9.4000	8.0000	30.0000	70 mm	2.0000	3	RAD	0.1700
07074	10.00 mm	10.0 mm	22 mm	9.4000	8.0000	30.0000	70 mm	3.0000	3	RAD	0.1700
07075	10.00 mm	10.0 mm	22 mm	9.4000	8.0000	30.0000	70 mm	-	3	BALL	0.1600
07076	10.00 mm	10.0 mm	40 mm	-	-	-	100 mm	-	3	SQ	0.2300
07077	10.00 mm	10.0 mm	22 mm	9.4000	33.0000	55.0000	100 mm	-	3	SQ	0.2400
07078	12.00 mm	12.0 mm	26 mm	11.4000	12.0000	38.0000	88 mm	-	3	SQ	0.3000
07079	12.00 mm	12.0 mm	26 mm	11.4000	12.0000	38.0000	88 mm	0.2000	3	RAD	0.3000
07081	12.00 mm	12.0 mm	26 mm	11.4000	12.0000	38.0000	88 mm	1.0000	3	RAD	0.3000
07082	12.00 mm	12.0 mm	26 mm	11.4000	12.0000	38.0000	88 mm	1.5000	3	RAD	0.2800
07083	12.00 mm	12.0 mm	26 mm	11.4000	12.0000	38.0000	88 mm	2.0000	3	RAD	0.3000
07084	12.00 mm	12.0 mm	26 mm	11.4000	12.0000	38.0000	88 mm	3.0000	3	RAD	0.2900
07085	12.00 mm	12.0 mm	26 mm	11.4000	12.0000	38.0000	88 mm	4.0000	3	RAD	0.3000
07086	12.00 mm	12.0 mm	26 mm	11.4000	12.0000	38.0000	88 mm	-	3	BALL	0.3000
07088	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	0.2000	3	RAD	0.2900
07089	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	0.5000	3	RAD	0.2900
07090	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	1.0000	3	RAD	0.2900
07091	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	1.5000	3	RAD	0.2900
07092	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	2.0000	3	RAD	0.2900
07093	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	3.0000	3	RAD	0.2900
07094	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	4.0000	3	RAD	0.2900
07095	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	-	3	BALL	0.2900
07126	16.00 mm	16.0 mm	24 mm	15.4000	26.0000	50.0000	100 mm	-	3	SQ	0.6100
07127	16.00 mm	16.0 mm	24 mm	15.4000	26.0000	50.0000	100 mm	0.5000	3	RAD	0.5700
07128	16.00 mm	16.0 mm	24 mm	15.4000	26.0000	50.0000	100 mm	1.0000	3	RAD	0.6100
07129	16.00 mm	16.0 mm	24 mm	15.4000	26.0000	50.0000	100 mm	1.5000	3	RAD	0.5600
07130	16.00 mm	16.0 mm	24 mm	15.4000	26.0000	50.0000	100 mm	3.0000	3	RAD	0.6200
07131	16.00 mm	16.0 mm	24 mm	15.4000	26.0000	50.0000	100 mm	6.0000	3	RAD	0.0000
07132	16.00 mm	16.0 mm	32 mm	15.4000	18.0000	50.0000	100 mm	-	3	SQ	0.5900
07133	16.00 mm	16.0 mm	32 mm	15.4000	18.0000	50.0000	100 mm	0.5000	3	RAD	0.5800
07134	16.00 mm	16.0 mm	32 mm	15.4000	18.0000	50.0000	100 mm	1.0000	3	RAD	0.5800
07135	16.00 mm	16.0 mm	32 mm	15.4000	18.0000	50.0000	100 mm	1.5000	3	RAD	0.5900
07136	16.00 mm	16.0 mm	32 mm	15.4000	18.0000	50.0000	100 mm	3.0000	3	RAD	0.5800
07137	16.00 mm	16.0 mm	32 mm	15.4000	18.0000	50.0000	100 mm	6.0000	3	RAD	0.5800
07171	20.00 mm	20.0 mm	30 mm	19.4000	20.0000	50.0000	100 mm	-	3	SQ	0.9400
07172	20.00 mm	20.0 mm	30 mm	19.4000	20.0000	50.0000	100 mm	0.5000	3	RAD	0.9400
07173	20.00 mm	20.0 mm	30 mm	19.4000	20.0000	50.0000	100 mm	1.0000	3	RAD	0.9400
07174	20.00 mm	20.0 mm	30 mm	19.4000	20.0000	50.0000	100 mm	1.5000	3	RAD	0.9500
07175	20.00 mm	20.0 mm	30 mm	19.4000	20.0000	50.0000	100 mm	3.0000	3	RAD	0.9500
07176	20.00 mm	20.0 mm	30 mm	19.4000	20.0000	50.0000	100 mm	4.0000	3	RAD	0.9400
07177	20.00 mm	20.0 mm	30 mm	19.4000	20.0000	50.0000	100 mm	5.0000	3	RAD	0.9400
07178	20.00 mm	20.0 mm	30 mm	19.4000	20.0000	50.0000	100 mm	6.0000	3	RAD	0.9300
07179	20.00 mm	20.0 mm	30 mm	19.4000	20.0000	50.0000	100 mm	8.0000	3	RAD	0.9300
07180	20.00 mm	20.0 mm	30 mm	19.4000	70.0000	100.0000	150 mm	-	3	SQ	1.4600
07181	20.00 mm	20.0 mm	30 mm	19.4000	70.0000	100.0000	150 mm	0.5000	3	RAD	1.4700
07182	20.00 mm	20.0 mm	30 mm	19.4000	70.0000	100.0000	150 mm	1.0000	3	RAD	1.4500
07183	20.00 mm	20.0 mm	30 mm	19.4000	70.0000	100.0000	150 mm	1.5000	3	RAD	0.0000
07184	20.00 mm	20.0 mm	30 mm	19.4000	70.0000	100.0000	150 mm	3.0000	3	RAD	1.4800
07185	20.00 mm	20.0 mm	30 mm	19.4000	70.0000	100.0000	150 mm	4.0000	3	RAD	1.4700
07186	20.00 mm	20.0 mm	30 mm	19.4000	70.0000	100.0000	150 mm	5.0000	3	RAD	1.4700
07187	20.00 mm	20.0 mm	30 mm	19.4000	70.0000	100.0000	150 mm	6.0000	3	RAD	0.0000
07188	20.00 mm	20.0 mm	30 mm	19.4000	70.0000	100.0000	150 mm	8.0000	3	RAD	0.0000
07212	12.00 mm	12.0 mm	26 mm	11.4000	12.0000	38.0000	88 mm	0.5000	3	RAD	0.3000
07213	12.00 mm	12.0 mm	36 mm	-	-	-	88 mm	-	3	SQ	0.2900

Technical overview

Geometry

Variable Helix - 3 flutes

Proprietary geometry with polished flutes breaks up harmonics

Construction

Solid submicron grain carbide end mill - center cutting

Configuration notes

Chip splitters and necks can be added within 48 hours

Tolerances

flute dia. +.000-.001" (+0.000-0.025mm) · shank dia. h6 · radius +.001" -.001" (+.025 -.025mm)

Operating guidance

Capable of running up to 40,000 RPM - reduces vibration and balance issues

Advantages

High efficiency milling
Engineered for High Efficiency Milling of Aluminum

Improved end geometry provides superior floor finishes and increased plunge rates

Applications & compatible materials

Applications

Milling
High efficiency milling

Compatible materials

Aluminum

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 64 KB · English View PDF Cutting parameters · Metric PDF · 64 KB · English View PDF Series catalog PDF · 822 KB · English View PDF

Compare With Similar Items

Product	GARR TOOL A3 Carbide End Mill — Metric View details	GARR TOOL G3 Carbide End Mill — Metric View details	GARR TOOL G5 Carbide End Mill — Metric View details	GARR TOOL G7 Carbide End Mill — Metric View details	GARR TOOL G7C Carbide End Mill — Metric View details	GARR TOOL V5 Carbide End Mill — Metric View details
Description	Solid submicron-grain carbide end mill for aluminum. Features variable helix geometry, 3 flutes, and a center-cutting design.	3-flute high-performance end mill made from solid submicron-grain carbide, with a center-cutting design. BALIQ TISINOS PRO coating (AlTiSiN-based).	5-flute high-performance end mill made from solid submicron-grain carbide, with a center-cutting design. BALIQ TISINOS PRO coating (AlTiSiN-based).	7-flute high-performance end mill made from solid submicron-grain carbide, with a non-center-cutting design. BALIQ TISINOS PRO coating (AlTiSiN).	7-flute high-performance end mill made from solid submicron-grain carbide, with a non-center-cutting design. BALIQ TISINOS PRO coating (AlTiSiN). Chip splitters help break long chips.	Solid submicron-grain carbide end mill for titanium, Inconel, and stainless steel. Features variable helix geometry, 5 flutes, AlCrN coating, and a center-cutting design.
Price	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote
