GARR TOOL X5 Carbide End Mill — Metric

Name: GARR TOOL X5 Carbide End Mill — Metric — 4.00 mm / 8 mm / -
Brand: GARR TOOL
SKU: 31406

GARR TOOL X5 Carbide End Mill — Metric

Pricing by quote

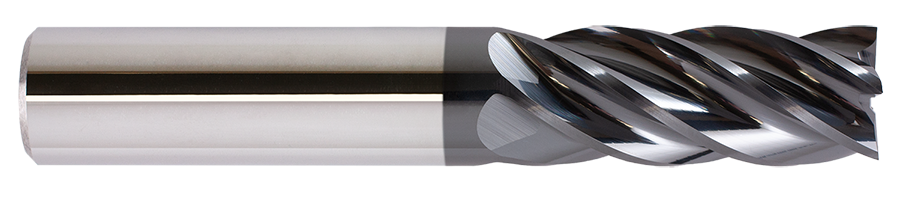

5-flute high-performance end mill made from solid submicron-grain carbide, with a center-cutting design. BALIQ ALCRONOS coating (AlCrN-based).

SKU: 31406

Availability confirmed with your quote.

GARR TOOL X5 Carbide End Mill — Metric

Pricing by quote

Technical Specifications

GARR TOOL X5 Carbide End Mill — Metric

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

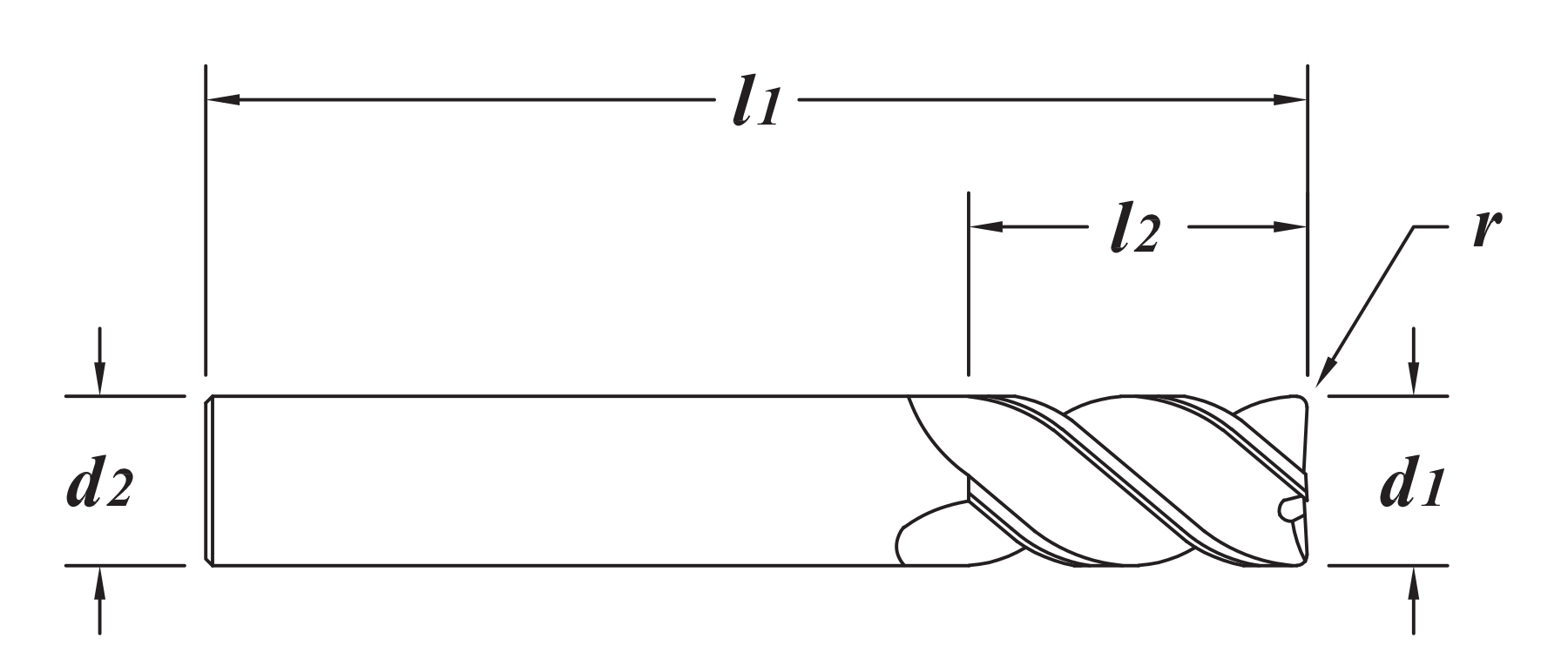

GARR TOOL X5 Carbide End Mill — Metric — manufacturer dimension reference drawing — **Dimension reference**
d₁
Cutting diameter
d₂
Shank diameter
l₂
Length of cut
l₁
Overall length
r
Corner radius
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Overall length l₁ (mm)	Corner radius r (mm)	Flutes	End type	Coating	Weight (lb)
31406	4.00 mm	6.0 mm	8 mm	50 mm	-	5	SQ	ALCRONOS	0.0400
31407	4.00 mm	6.0 mm	8 mm	50 mm	0.3000	5	RAD	ALCRONOS	0.0400
31408	4.00 mm	6.0 mm	8 mm	50 mm	0.5000	5	RAD	ALCRONOS	0.0400
31409	4.00 mm	6.0 mm	16 mm	50 mm	-	5	SQ	ALCRONOS	0.0400
31410	4.00 mm	6.0 mm	16 mm	50 mm	0.3000	5	RAD	ALCRONOS	0.0400
31411	4.00 mm	6.0 mm	16 mm	50 mm	0.5000	5	RAD	ALCRONOS	0.0400
31421	5.00 mm	6.0 mm	10 mm	50 mm	-	5	SQ	ALCRONOS	0.0500
31422	5.00 mm	6.0 mm	10 mm	50 mm	0.3000	5	RAD	ALCRONOS	0.0400
31423	5.00 mm	6.0 mm	10 mm	50 mm	0.5000	5	RAD	ALCRONOS	0.0500
31424	5.00 mm	6.0 mm	15 mm	65 mm	-	5	SQ	ALCRONOS	0.0600
31425	5.00 mm	6.0 mm	15 mm	65 mm	0.3000	5	RAD	ALCRONOS	0.0600
31426	5.00 mm	6.0 mm	15 mm	65 mm	0.5000	5	RAD	ALCRONOS	0.0600
31431	6.00 mm	6.0 mm	13 mm	50 mm	-	5	SQ	ALCRONOS	0.0500
31432	6.00 mm	6.0 mm	13 mm	50 mm	0.3000	5	RAD	ALCRONOS	0.0500
31433	6.00 mm	6.0 mm	13 mm	50 mm	0.5000	5	RAD	ALCRONOS	0.0400
31434	6.00 mm	6.0 mm	19 mm	65 mm	-	5	SQ	ALCRONOS	0.0600
31435	6.00 mm	6.0 mm	19 mm	65 mm	0.3000	5	RAD	ALCRONOS	0.0600
31436	6.00 mm	6.0 mm	19 mm	65 mm	0.5000	5	RAD	ALCRONOS	0.0600
31437	6.00 mm	6.0 mm	26 mm	75 mm	-	5	SQ	ALCRONOS	0.0700
31438	6.00 mm	6.0 mm	26 mm	75 mm	0.3000	5	RAD	ALCRONOS	0.0700
31439	6.00 mm	6.0 mm	26 mm	75 mm	0.5000	5	RAD	ALCRONOS	0.0700
31456	8.00 mm	8.0 mm	22 mm	65 mm	-	5	SQ	ALCRONOS	0.1100
31457	8.00 mm	8.0 mm	22 mm	65 mm	0.5000	5	RAD	ALCRONOS	0.1100
31458	8.00 mm	8.0 mm	22 mm	65 mm	1.0000	5	RAD	ALCRONOS	0.1100
31459	8.00 mm	8.0 mm	32 mm	75 mm	-	5	SQ	ALCRONOS	0.1200
31460	8.00 mm	8.0 mm	32 mm	75 mm	0.5000	5	RAD	ALCRONOS	0.1200
31461	8.00 mm	8.0 mm	32 mm	75 mm	1.0000	5	RAD	ALCRONOS	0.1200
31480	10.00 mm	10.0 mm	26 mm	70 mm	-	5	SQ	ALCRONOS	0.1700
31481	10.00 mm	10.0 mm	26 mm	70 mm	0.5000	5	RAD	ALCRONOS	0.1700
31482	10.00 mm	10.0 mm	26 mm	70 mm	1.0000	5	RAD	ALCRONOS	0.1700
31483	10.00 mm	10.0 mm	32 mm	75 mm	-	5	SQ	ALCRONOS	0.1800
31484	10.00 mm	10.0 mm	32 mm	75 mm	0.5000	5	RAD	ALCRONOS	0.1800
31485	10.00 mm	10.0 mm	32 mm	75 mm	1.0000	5	RAD	ALCRONOS	0.1800
31486	12.00 mm	12.0 mm	19 mm	65 mm	-	5	SQ	ALCRONOS	0.2400
31487	12.00 mm	12.0 mm	19 mm	65 mm	0.3000	5	RAD	ALCRONOS	0.2400
31488	12.00 mm	12.0 mm	19 mm	65 mm	0.5000	5	RAD	ALCRONOS	0.2400
31489	12.00 mm	12.0 mm	19 mm	65 mm	1.0000	5	RAD	ALCRONOS	0.2400
31490	12.00 mm	12.0 mm	26 mm	75 mm	-	5	SQ	ALCRONOS	0.2600
31491	12.00 mm	12.0 mm	26 mm	75 mm	0.3000	5	RAD	ALCRONOS	0.2600
31492	12.00 mm	12.0 mm	26 mm	75 mm	0.5000	5	RAD	ALCRONOS	0.2700
31493	12.00 mm	12.0 mm	26 mm	75 mm	1.0000	5	RAD	ALCRONOS	0.2600
31494	12.00 mm	12.0 mm	32 mm	75 mm	-	5	SQ	ALCRONOS	0.2600
31495	12.00 mm	12.0 mm	32 mm	75 mm	0.3000	5	RAD	ALCRONOS	0.2500
31496	12.00 mm	12.0 mm	32 mm	75 mm	0.5000	5	RAD	ALCRONOS	0.2600
31497	12.00 mm	12.0 mm	32 mm	75 mm	1.0000	5	RAD	ALCRONOS	0.2600
31498	12.00 mm	12.0 mm	42 mm	100 mm	-	5	SQ	ALCRONOS	0.3400
31499	12.00 mm	12.0 mm	42 mm	100 mm	0.3000	5	RAD	ALCRONOS	0.3300
31500	12.00 mm	12.0 mm	42 mm	100 mm	0.5000	5	RAD	ALCRONOS	0.3400
31501	12.00 mm	12.0 mm	42 mm	100 mm	1.0000	5	RAD	ALCRONOS	0.3400
31502	12.00 mm	12.0 mm	50 mm	100 mm	-	5	SQ	ALCRONOS	0.3300
31503	12.00 mm	12.0 mm	50 mm	100 mm	0.3000	5	RAD	ALCRONOS	0.3300
31504	12.00 mm	12.0 mm	50 mm	100 mm	0.5000	5	RAD	ALCRONOS	0.3200
31505	12.00 mm	12.0 mm	50 mm	100 mm	1.0000	5	RAD	ALCRONOS	0.3300
31545	16.00 mm	16.0 mm	32 mm	88 mm	-	5	SQ	ALCRONOS	0.5500
31546	16.00 mm	16.0 mm	32 mm	88 mm	0.5000	5	RAD	ALCRONOS	0.5500
31548	16.00 mm	16.0 mm	32 mm	88 mm	1.0000	5	RAD	ALCRONOS	0.5500
31549	16.00 mm	16.0 mm	40 mm	100 mm	-	5	SQ	ALCRONOS	0.5900
31550	16.00 mm	16.0 mm	40 mm	100 mm	0.5000	5	RAD	ALCRONOS	0.6000
31551	16.00 mm	16.0 mm	40 mm	100 mm	1.0000	5	RAD	ALCRONOS	0.6000
31552	16.00 mm	16.0 mm	50 mm	100 mm	-	5	SQ	ALCRONOS	0.5700
31553	16.00 mm	16.0 mm	50 mm	100 mm	0.5000	5	RAD	ALCRONOS	0.5700
31554	16.00 mm	16.0 mm	50 mm	100 mm	1.0000	5	RAD	ALCRONOS	0.5600
31574	20.00 mm	20.0 mm	38 mm	100 mm	-	5	SQ	ALCRONOS	0.9600
31575	20.00 mm	20.0 mm	38 mm	100 mm	0.5000	5	RAD	ALCRONOS	0.9600
31576	20.00 mm	20.0 mm	38 mm	100 mm	1.0000	5	RAD	ALCRONOS	0.9600
31578	20.00 mm	20.0 mm	50 mm	100 mm	-	5	SQ	ALCRONOS	0.9000
31579	20.00 mm	20.0 mm	50 mm	100 mm	0.5000	5	RAD	ALCRONOS	0.9000
31581	20.00 mm	20.0 mm	50 mm	100 mm	1.0000	5	RAD	ALCRONOS	0.9000

Technical overview

Geometry

5 Flute High Performance End Mill

Variable flute grind

Construction

Solid submicron grain carbide end mill - center cutting

Coating and finish

BALIQ� ALCRONOS Coating (AlCrN-based)

Material and condition specific coating

Technical details

Honed edge treatment
Polished fluting

Tolerances

flute dia. +.000-.002" (+.000-.050mm) · shank dia. -.0001-.0004" (-0.0025-0.0100mm) · radius +.001-.001" (+0.025-0.025mm)

Advantages

High efficiency milling
Engineered for High Efficiency Milling

Applications & compatible materials

Applications

Milling
High efficiency milling

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 67 KB · English View PDF Cutting parameters · Metric PDF · 62 KB · English View PDF Series catalog PDF · 1154 KB · English View PDF
