GARR TOOL X3 Carbide End Mill — Metric

Name: GARR TOOL X3 Carbide End Mill — Metric — 0.80 mm / 2 mm / -
Brand: GARR TOOL
SKU: 87103

GARR TOOL X3 Carbide End Mill — Metric

Pricing by quote

3-flute high-performance end mill made from solid submicron-grain carbide, with a center-cutting design. BALIQ ALCRONOS coating (AlCrN-based).

SKU: 87103

Availability confirmed with your quote.

GARR TOOL X3 Carbide End Mill — Metric

Pricing by quote

Technical Specifications

GARR TOOL X3 Carbide End Mill — Metric

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

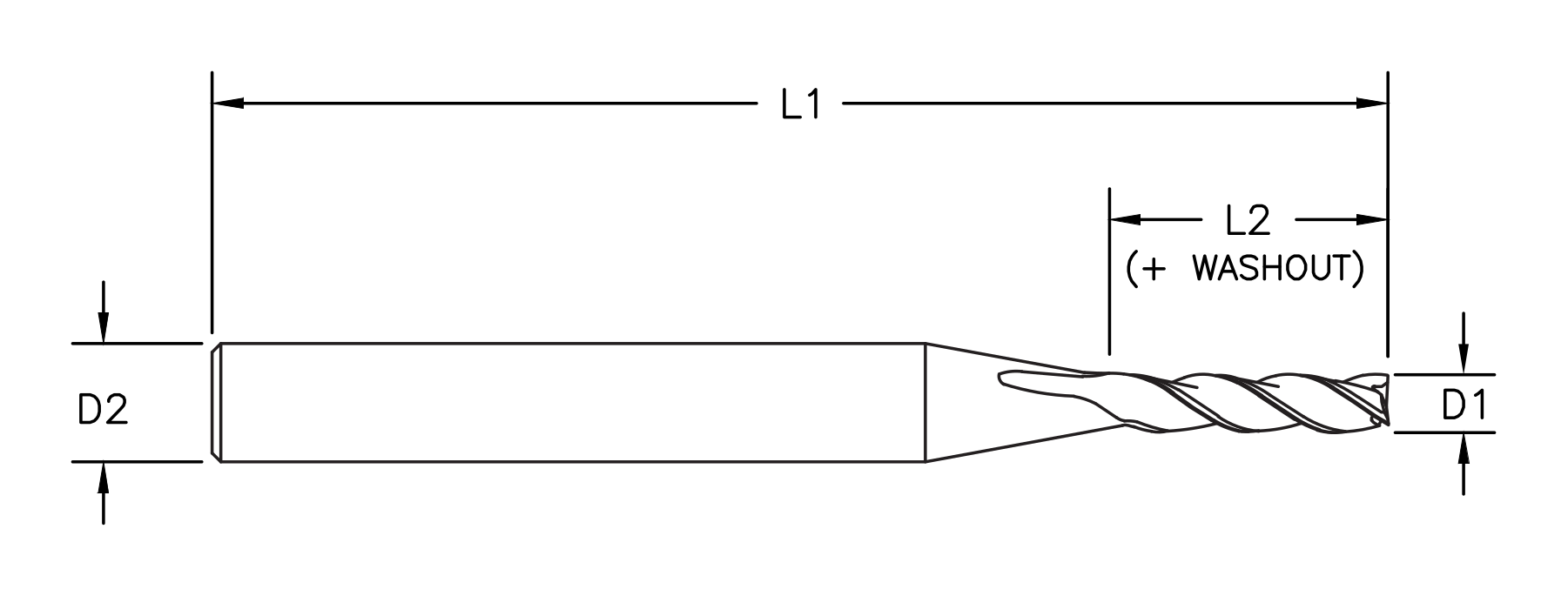

GARR TOOL X3 Carbide End Mill — Metric — manufacturer dimension reference drawing — **Dimension reference**
D₁
Cutting diameter
D₂
Shank diameter
L₂
Length of cut
L₁
Overall length
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter D₁ (mm)	Shank diameter D₂ (mm)	Length of cut L₂ (mm)	Overall length L₁ (mm)	Corner radius (mm)	Flutes	End type	Coating	Weight (lb)
87103	0.80 mm	6.0 mm	2 mm	50 mm	-	3	SQ	ALCRONOS	0.0000
87104	0.90 mm	6.0 mm	3 mm	50 mm	-	3	SQ	ALCRONOS	0.0000
87105	1.00 mm	6.0 mm	3 mm	50 mm	-	3	SQ	ALCRONOS	0.0400
87111	1.50 mm	6.0 mm	3 mm	50 mm	-	3	SQ	ALCRONOS	0.0000
87112	1.50 mm	6.0 mm	3 mm	50 mm	0.2000	3	RAD	ALCRONOS	0.0000
87113	1.50 mm	6.0 mm	6 mm	50 mm	-	3	SQ	ALCRONOS	0.0400
87114	1.50 mm	6.0 mm	6 mm	50 mm	0.2000	3	RAD	ALCRONOS	0.0400
87127	2.00 mm	6.0 mm	8 mm	50 mm	-	3	SQ	ALCRONOS	0.0400
87128	2.00 mm	6.0 mm	8 mm	50 mm	0.1000	3	RAD	ALCRONOS	0.0400
87129	2.00 mm	6.0 mm	8 mm	50 mm	0.2000	3	RAD	ALCRONOS	0.0400
87138	2.50 mm	6.0 mm	8 mm	50 mm	-	3	SQ	ALCRONOS	0.0000
87139	2.50 mm	6.0 mm	8 mm	50 mm	0.1000	3	RAD	ALCRONOS	0.0000
87140	2.50 mm	6.0 mm	8 mm	50 mm	0.2000	3	RAD	ALCRONOS	0.0000
87149	3.00 mm	6.0 mm	6 mm	50 mm	-	3	SQ	ALCRONOS	0.0000
87150	3.00 mm	6.0 mm	6 mm	50 mm	0.1000	3	RAD	ALCRONOS	0.0000
87151	3.00 mm	6.0 mm	6 mm	50 mm	0.2000	3	RAD	ALCRONOS	0.0000
87152	3.00 mm	6.0 mm	6 mm	50 mm	0.3000	3	RAD	ALCRONOS	0.0000
87153	3.00 mm	6.0 mm	6 mm	50 mm	0.5000	3	RAD	ALCRONOS	0.0000
87154	3.00 mm	6.0 mm	9 mm	50 mm	-	3	SQ	ALCRONOS	0.0000
87155	3.00 mm	6.0 mm	9 mm	50 mm	0.2000	3	RAD	ALCRONOS	0.0000
87156	3.00 mm	6.0 mm	9 mm	50 mm	0.3000	3	RAD	ALCRONOS	0.0000
87157	3.00 mm	6.0 mm	9 mm	50 mm	0.5000	3	RAD	ALCRONOS	0.0000
87158	3.00 mm	6.0 mm	12 mm	65 mm	-	3	SQ	ALCRONOS	0.0000
87159	3.00 mm	6.0 mm	12 mm	65 mm	0.1000	3	RAD	ALCRONOS	0.0000
87160	3.00 mm	6.0 mm	12 mm	65 mm	0.2000	3	RAD	ALCRONOS	0.0000
87161	3.00 mm	6.0 mm	12 mm	65 mm	0.3000	3	RAD	ALCRONOS	0.0000
87162	3.00 mm	6.0 mm	12 mm	65 mm	0.5000	3	RAD	ALCRONOS	0.0000
87181	4.00 mm	6.0 mm	8 mm	50 mm	-	3	SQ	ALCRONOS	0.0000
87182	4.00 mm	6.0 mm	8 mm	50 mm	0.3000	3	RAD	ALCRONOS	0.0000
87183	4.00 mm	6.0 mm	8 mm	50 mm	0.5000	3	RAD	ALCRONOS	0.0000
87193	5.00 mm	6.0 mm	10 mm	50 mm	-	3	SQ	ALCRONOS	0.0000
87194	5.00 mm	6.0 mm	10 mm	50 mm	0.3000	3	RAD	ALCRONOS	0.0000
87195	5.00 mm	6.0 mm	10 mm	50 mm	0.5000	3	RAD	ALCRONOS	0.0000
87196	5.00 mm	6.0 mm	15 mm	65 mm	-	3	SQ	ALCRONOS	0.0000
87197	5.00 mm	6.0 mm	15 mm	65 mm	0.3000	3	RAD	ALCRONOS	0.0000
87198	5.00 mm	6.0 mm	15 mm	65 mm	0.5000	3	RAD	ALCRONOS	0.0000
87203	6.00 mm	6.0 mm	13 mm	50 mm	-	3	SQ	ALCRONOS	0.0000
87204	6.00 mm	6.0 mm	13 mm	50 mm	0.3000	3	RAD	ALCRONOS	0.0000
87205	6.00 mm	6.0 mm	13 mm	50 mm	0.5000	3	RAD	ALCRONOS	0.0000
87206	6.00 mm	6.0 mm	19 mm	65 mm	-	3	SQ	ALCRONOS	0.0000
87207	6.00 mm	6.0 mm	19 mm	65 mm	0.3000	3	RAD	ALCRONOS	0.0000
87208	6.00 mm	6.0 mm	19 mm	65 mm	0.5000	3	RAD	ALCRONOS	0.0000
87209	6.00 mm	6.0 mm	26 mm	75 mm	-	3	SQ	ALCRONOS	0.0000
87210	6.00 mm	6.0 mm	26 mm	75 mm	0.3000	3	RAD	ALCRONOS	0.0000
87211	6.00 mm	6.0 mm	26 mm	75 mm	0.5000	3	RAD	ALCRONOS	0.0000

Technical overview

Geometry

3 Flute High Performance End Mill

Variable flute grind

Construction

Solid submicron grain carbide end mill - center cutting

Coating and finish

BALIQ® ALCRONOS Coating (AlCrN-based)

Material and condition specific coating

Technical details

Honed edge treatment
Polished fluting

Tolerances

flute dia. +.000-.002" (+.000-.050mm) · shank dia. -.0001-.0004" (-0.0025-0.0100mm) · radius +.001-.001" (+0.025-0.025mm)

Advantages

High efficiency milling
Engineered for High Efficiency Milling

Applications & compatible materials

Applications

Milling
High efficiency milling

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 64 KB · English View PDF Cutting parameters · Metric PDF · 57 KB · English View PDF Series catalog PDF · 747 KB · English View PDF

Compare With Similar Items

Product	GARR TOOL X3 Carbide End Mill — Metric View details	GARR TOOL A3 Carbide End Mill — Metric View details	GARR TOOL G3 Carbide End Mill — Metric View details	GARR TOOL G5 Carbide End Mill — Metric View details	GARR TOOL G7 Carbide End Mill — Metric View details	GARR TOOL G7C Carbide End Mill — Metric View details
Description	3-flute high-performance end mill made from solid submicron-grain carbide, with a center-cutting design. BALIQ ALCRONOS coating (AlCrN-based).	Solid submicron-grain carbide end mill for aluminum. Features variable helix geometry, 3 flutes, and a center-cutting design.	3-flute high-performance end mill made from solid submicron-grain carbide, with a center-cutting design. BALIQ TISINOS PRO coating (AlTiSiN-based).	5-flute high-performance end mill made from solid submicron-grain carbide, with a center-cutting design. BALIQ TISINOS PRO coating (AlTiSiN-based).	7-flute high-performance end mill made from solid submicron-grain carbide, with a non-center-cutting design. BALIQ TISINOS PRO coating (AlTiSiN).	7-flute high-performance end mill made from solid submicron-grain carbide, with a non-center-cutting design. BALIQ TISINOS PRO coating (AlTiSiN). Chip splitters help break long chips.
Price	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote	Pricing by quote

Browse by category

Quick links

GARR TOOL X3 Carbide End Mill — Metric
