GARR TOOL G3 Carbide End Mill — Metric

Name: GARR TOOL G3 Carbide End Mill — Metric — 0.80 mm / 2 mm / -
Brand: GARR TOOL
SKU: 88103

GARR TOOL G3 Carbide End Mill — Metric

Pricing by quote

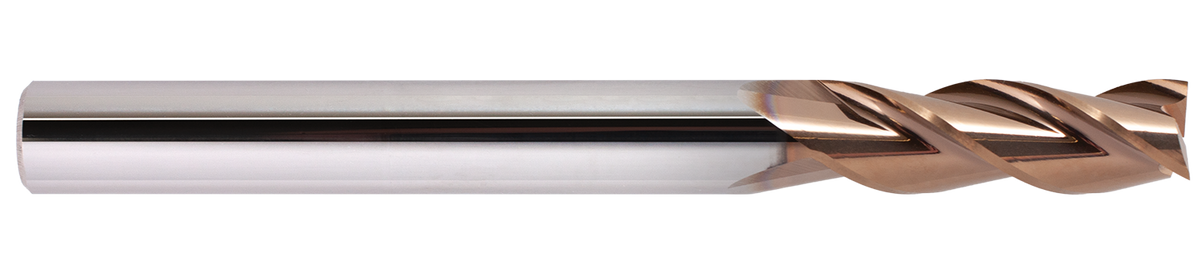

3-flute high-performance end mill made from solid submicron-grain carbide, with a center-cutting design. BALIQ TISINOS PRO coating (AlTiSiN-based).

SKU: 88103

Availability confirmed with your quote.

GARR TOOL G3 Carbide End Mill — Metric

Pricing by quote

Technical Specifications

GARR TOOL G3 Carbide End Mill — Metric

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

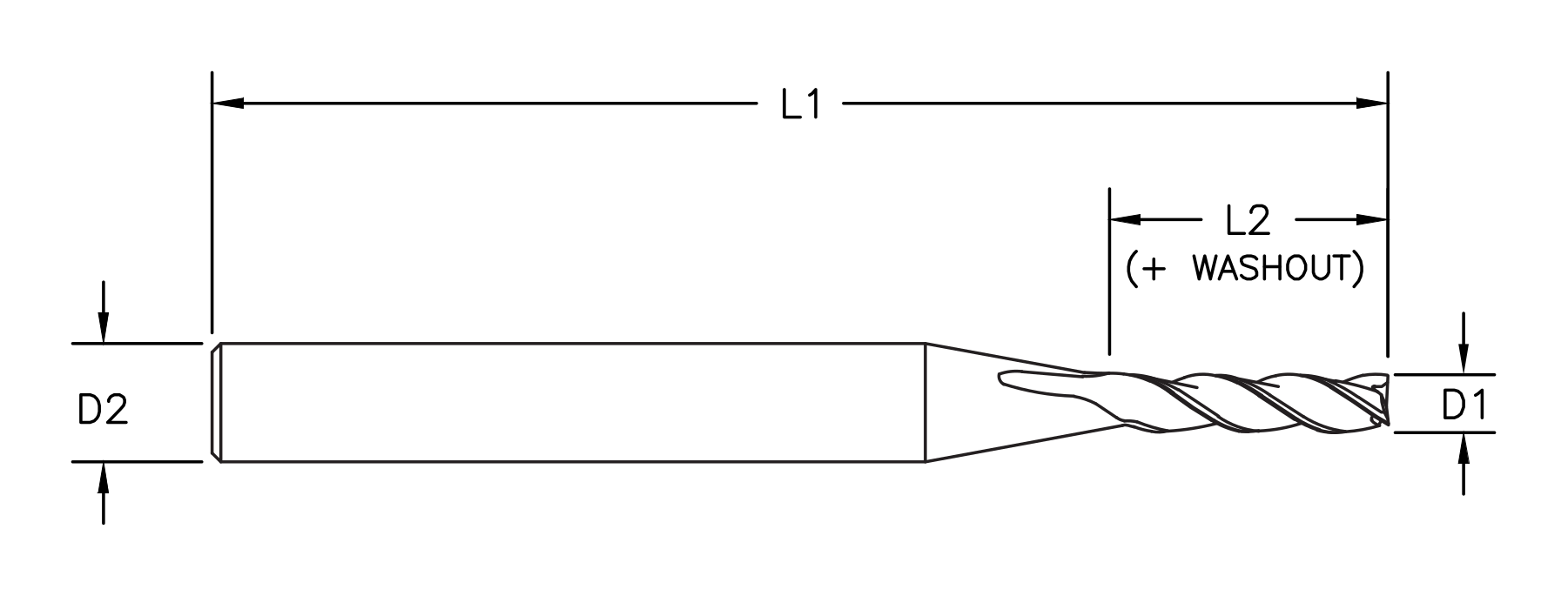

GARR TOOL G3 Carbide End Mill — Metric — manufacturer dimension reference drawing — **Dimension reference**
D₁
Cutting diameter
D₂
Shank diameter
L₂
Length of cut
L₁
Overall length
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter D₁ (mm)	Shank diameter D₂ (mm)	Length of cut L₂ (mm)	Overall length L₁ (mm)	Corner radius (mm)	Flutes	End type	Coating	Weight (lb)
88103	0.80 mm	6.0 mm	2 mm	50 mm	-	3	SQ	TISINOS-PRO	0.0000
88104	0.90 mm	6.0 mm	3 mm	50 mm	-	3	SQ	TISINOS-PRO	0.0000
88105	1.00 mm	6.0 mm	3 mm	50 mm	-	3	SQ	TISINOS-PRO	0.0400
88111	1.50 mm	6.0 mm	3 mm	50 mm	-	3	SQ	TISINOS-PRO	0.0000
88112	1.50 mm	6.0 mm	3 mm	50 mm	0.2000	3	RAD	TISINOS-PRO	0.0000
88113	1.50 mm	6.0 mm	6 mm	50 mm	-	3	SQ	TISINOS-PRO	0.0400
88114	1.50 mm	6.0 mm	6 mm	50 mm	0.2000	3	RAD	TISINOS-PRO	0.0400
88127	2.00 mm	6.0 mm	8 mm	50 mm	-	3	SQ	TISINOS-PRO	0.0400
88128	2.00 mm	6.0 mm	8 mm	50 mm	0.1000	3	RAD	TISINOS-PRO	0.0400
88129	2.00 mm	6.0 mm	8 mm	50 mm	0.2000	3	RAD	TISINOS-PRO	0.0300
88138	2.50 mm	6.0 mm	8 mm	50 mm	-	3	SQ	TISINOS-PRO	0.0000
88139	2.50 mm	6.0 mm	8 mm	50 mm	0.1000	3	RAD	TISINOS-PRO	0.0000
88140	2.50 mm	6.0 mm	8 mm	50 mm	0.2000	3	RAD	TISINOS-PRO	0.0000
88149	3.00 mm	6.0 mm	6 mm	50 mm	-	3	SQ	TISINOS-PRO	0.0000
88150	3.00 mm	6.0 mm	6 mm	50 mm	0.1000	3	RAD	TISINOS-PRO	0.0000
88151	3.00 mm	6.0 mm	6 mm	50 mm	0.2000	3	RAD	TISINOS-PRO	0.0000
88152	3.00 mm	6.0 mm	6 mm	50 mm	0.3000	3	RAD	TISINOS-PRO	0.0000
88153	3.00 mm	6.0 mm	6 mm	50 mm	0.5000	3	RAD	TISINOS-PRO	0.0000
88154	3.00 mm	6.0 mm	9 mm	50 mm	-	3	SQ	TISINOS-PRO	0.0000
88155	3.00 mm	6.0 mm	9 mm	50 mm	0.2000	3	RAD	TISINOS-PRO	0.0000
88156	3.00 mm	6.0 mm	9 mm	50 mm	0.3000	3	RAD	TISINOS-PRO	0.0000
88157	3.00 mm	6.0 mm	9 mm	50 mm	0.5000	3	RAD	TISINOS-PRO	0.0000
88158	3.00 mm	6.0 mm	12 mm	65 mm	-	3	SQ	TISINOS-PRO	0.0000
88159	3.00 mm	6.0 mm	12 mm	65 mm	0.1000	3	RAD	TISINOS-PRO	0.0000
88160	3.00 mm	6.0 mm	12 mm	65 mm	0.2000	3	RAD	TISINOS-PRO	0.0000
88161	3.00 mm	6.0 mm	12 mm	65 mm	0.3000	3	RAD	TISINOS-PRO	0.0000
88162	3.00 mm	6.0 mm	12 mm	65 mm	0.5000	3	RAD	TISINOS-PRO	0.0000
88181	4.00 mm	6.0 mm	8 mm	50 mm	-	3	SQ	TISINOS-PRO	0.0000
88182	4.00 mm	6.0 mm	8 mm	50 mm	0.3000	3	RAD	TISINOS-PRO	0.0000
88183	4.00 mm	6.0 mm	8 mm	50 mm	0.5000	3	RAD	TISINOS-PRO	0.0000
88193	5.00 mm	6.0 mm	10 mm	50 mm	-	3	SQ	TISINOS-PRO	0.0000
88194	5.00 mm	6.0 mm	10 mm	50 mm	0.3000	3	RAD	TISINOS-PRO	0.0000
88195	5.00 mm	6.0 mm	10 mm	50 mm	0.5000	3	RAD	TISINOS-PRO	0.0000
88196	5.00 mm	6.0 mm	15 mm	65 mm	-	3	SQ	TISINOS-PRO	0.0000
88197	5.00 mm	6.0 mm	15 mm	65 mm	0.3000	3	RAD	TISINOS-PRO	0.0000
88198	5.00 mm	6.0 mm	15 mm	65 mm	0.5000	3	RAD	TISINOS-PRO	0.0000
88203	6.00 mm	6.0 mm	13 mm	50 mm	-	3	SQ	TISINOS-PRO	0.0000
88204	6.00 mm	6.0 mm	13 mm	50 mm	0.3000	3	RAD	TISINOS-PRO	0.0000
88205	6.00 mm	6.0 mm	13 mm	50 mm	0.5000	3	RAD	TISINOS-PRO	0.0000
88206	6.00 mm	6.0 mm	19 mm	65 mm	-	3	SQ	TISINOS-PRO	0.0000
88207	6.00 mm	6.0 mm	19 mm	65 mm	0.3000	3	RAD	TISINOS-PRO	0.0000
88208	6.00 mm	6.0 mm	19 mm	65 mm	0.5000	3	RAD	TISINOS-PRO	0.0000
88209	6.00 mm	6.0 mm	26 mm	75 mm	-	3	SQ	TISINOS-PRO	0.0000
88210	6.00 mm	6.0 mm	26 mm	75 mm	0.3000	3	RAD	TISINOS-PRO	0.0000
88211	6.00 mm	6.0 mm	26 mm	75 mm	0.5000	3	RAD	TISINOS-PRO	0.0000

Technical overview

Geometry

3 Flute High Performance End Mill

Variable flute grind

Construction

Solid submicron grain carbide end mill - center cutting

Coating and finish

BALIQ� TISINOS PRO Coating (AlTiSiN-based)

Material and condition specific coating

Technical details

Honed edge treatment
Polished fluting

50-70 HRc

Tolerances

flute dia. +.000-.002" (+.000-.050mm) · shank dia. -.0001-.0004" (-0.0025-0.0100mm) · radius +.001-.001" (+0.025-0.025mm)

Advantages

High efficiency milling
Engineered for High Efficiency Milling

Applications & compatible materials

Applications

Milling
High efficiency milling

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 64 KB · English View PDF Cutting parameters · Metric PDF · 57 KB · English View PDF Series catalog PDF · 747 KB · English View PDF
