GARR TOOL G7C Carbide End Mill — Metric

Name: GARR TOOL G7C Carbide End Mill — Metric — 10.00 mm / 25 mm / -
Brand: GARR TOOL
SKU: 64708

GARR TOOL G7C Carbide End Mill — Metric

Pricing by quote

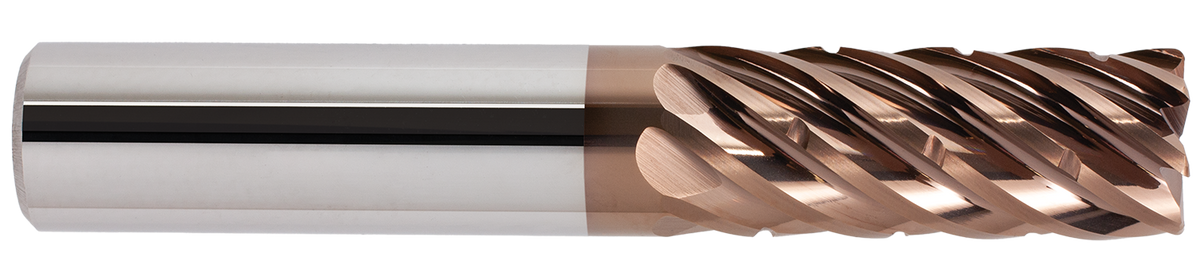

7-flute high-performance end mill made from solid submicron-grain carbide, with a non-center-cutting design. BALIQ TISINOS PRO coating (AlTiSiN). Chip splitters help break long chips.

SKU: 64708

Availability confirmed with your quote.

GARR TOOL G7C Carbide End Mill — Metric

Pricing by quote

Technical Specifications

GARR TOOL G7C Carbide End Mill — Metric

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

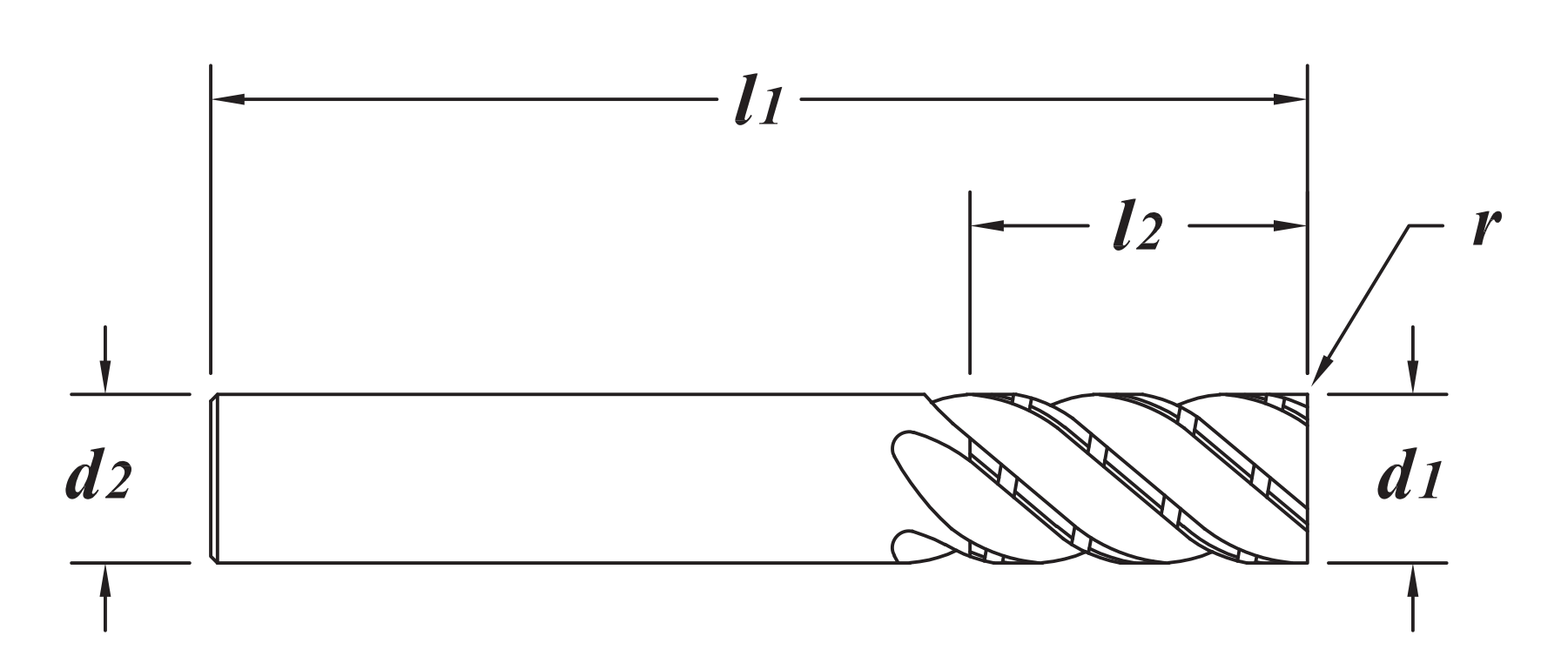

GARR TOOL G7C Carbide End Mill — Metric — manufacturer dimension reference drawing — **Dimension reference**
d₁
Cutting diameter
d₂
Shank diameter
l₂
Length of cut
l₁
Overall length
r
Corner radius
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Overall length l₁ (mm)	Corner radius r (mm)	Flutes	End type	Coating	Weight (lb)
64708	10.00 mm	10.0 mm	25 mm	70 mm	-	7	SQ	TISINOS-PRO	0.1800
64709	10.00 mm	10.0 mm	25 mm	70 mm	0.5000	7	RAD	TISINOS-PRO	0.1800
64710	10.00 mm	10.0 mm	25 mm	70 mm	1.0000	7	RAD	TISINOS-PRO	0.1800
64711	12.00 mm	12.0 mm	26 mm	75 mm	-	7	SQ	TISINOS-PRO	0.2800
64712	12.00 mm	12.0 mm	26 mm	75 mm	0.5000	7	RAD	TISINOS-PRO	0.2800
64713	12.00 mm	12.0 mm	26 mm	75 mm	1.0000	7	RAD	TISINOS-PRO	0.2800
64714	12.00 mm	12.0 mm	32 mm	75 mm	-	7	SQ	TISINOS-PRO	0.2700
64715	12.00 mm	12.0 mm	32 mm	75 mm	0.5000	7	RAD	TISINOS-PRO	0.2800
64716	12.00 mm	12.0 mm	32 mm	75 mm	1.0000	7	RAD	TISINOS-PRO	0.2700
64717	12.00 mm	12.0 mm	42 mm	100 mm	1.0000	7	RAD	TISINOS-PRO	0.3600
64718	12.00 mm	12.0 mm	50 mm	100 mm	-	7	SQ	TISINOS-PRO	0.3500
64719	12.00 mm	12.0 mm	50 mm	100 mm	0.5000	7	RAD	TISINOS-PRO	0.3500
64720	12.00 mm	12.0 mm	50 mm	100 mm	1.0000	7	RAD	TISINOS-PRO	0.3500
64746	14.00 mm	14.0 mm	32 mm	88 mm	0.5000	7	RAD	TISINOS-PRO	0.0000
64774	16.00 mm	16.0 mm	32 mm	88 mm	-	7	SQ	TISINOS-PRO	0.0000
64775	16.00 mm	16.0 mm	32 mm	88 mm	0.5000	7	RAD	TISINOS-PRO	0.0000
64776	16.00 mm	16.0 mm	32 mm	88 mm	1.0000	7	RAD	TISINOS-PRO	0.0000
64777	16.00 mm	16.0 mm	32 mm	88 mm	2.0000	7	RAD	TISINOS-PRO	0.0000
64778	16.00 mm	16.0 mm	40 mm	100 mm	-	7	SQ	TISINOS-PRO	0.0000
64779	16.00 mm	16.0 mm	40 mm	100 mm	0.5000	7	RAD	TISINOS-PRO	0.0000
64780	16.00 mm	16.0 mm	40 mm	100 mm	0.7500	7	RAD	TISINOS-PRO	0.0000
64781	16.00 mm	16.0 mm	40 mm	100 mm	1.0000	7	RAD	TISINOS-PRO	0.0000
64782	16.00 mm	16.0 mm	40 mm	100 mm	1.5000	7	RAD	TISINOS-PRO	0.6500
64783	16.00 mm	16.0 mm	50 mm	100 mm	-	7	SQ	TISINOS-PRO	0.6300
64784	16.00 mm	16.0 mm	50 mm	100 mm	0.5000	7	RAD	TISINOS-PRO	0.6300
64785	16.00 mm	16.0 mm	50 mm	100 mm	1.0000	7	RAD	TISINOS-PRO	0.6300
64786	16.00 mm	16.0 mm	65 mm	125 mm	0.5000	7	RAD	TISINOS-PRO	0.7900
64787	16.00 mm	16.0 mm	65 mm	125 mm	3.0000	7	RAD	TISINOS-PRO	0.7900
64814	20.00 mm	20.0 mm	38 mm	100 mm	-	7	SQ	TISINOS-PRO	0.0000
64815	20.00 mm	20.0 mm	38 mm	100 mm	0.5000	7	RAD	TISINOS-PRO	0.0000
64816	20.00 mm	20.0 mm	38 mm	100 mm	1.0000	7	RAD	TISINOS-PRO	0.0000
64817	20.00 mm	20.0 mm	50 mm	100 mm	-	7	SQ	TISINOS-PRO	0.0000
64818	20.00 mm	20.0 mm	50 mm	100 mm	0.5000	7	RAD	TISINOS-PRO	0.0000
64819	20.00 mm	20.0 mm	50 mm	100 mm	1.0000	7	RAD	TISINOS-PRO	0.0000

Technical overview

Geometry

7 Flute High Performance End Mill

Variable flute grind

Construction

Solid submicron grain carbide end mill - non-center cutting

Coating and finish

BALIQ TISINOS PRO Coating (AlTiSiN)

Material and condition specific coating

Technical details

Honed edge treatment
Polished fluting

Tolerances

flute dia. +.000-.002" (+.000mm-.050mm) · shank dia. h6 · radius +.001-.001" (+.025mm-.025mm)

Operating guidance

Up to 15% Radial (ae) engagement

Advantages

Chip control
Chip splitters to help break long chips

High efficiency milling
Engineered for High Efficiency Milling

Applications & compatible materials

Applications

Milling
High efficiency milling

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 59 KB · English View PDF Cutting parameters · Metric PDF · 55 KB · English View PDF Series catalog PDF · 913 KB · English View PDF
