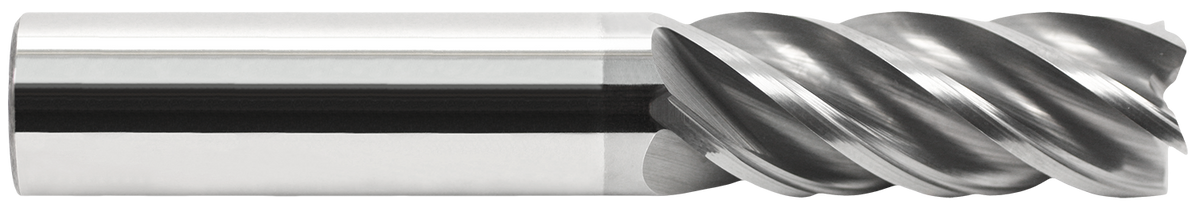

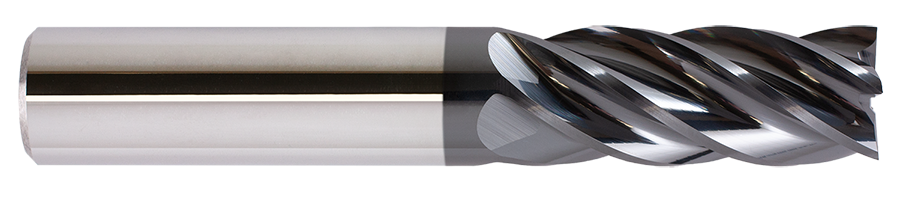

Representative series image. Refer to the selected EDP for exact specifications.
Request quote
GARR TOOL V5 Carbide End Mill — Metric
GARR TOOL V5 Carbide End Mill — Metric
Pricing by quote
Solid submicron-grain carbide end mill for titanium, Inconel, and stainless steel. Features variable helix geometry, 5 flutes, AlCrN coating, and a center-cutting design.
…
Availability confirmed with your quote.
Couldn't load pickup availability
Technical Specifications
GARR TOOL V5 Carbide End Mill — Metric
Exact tool data. Clear decisions.
Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.
Tool configurations
- d1
- Cutting diameter
- d2
- Shank diameter
- l2
- Length of cut
- d3
- Neck diameter
- l3
- Reach
- l1
- Overall length
- r
- Corner radius

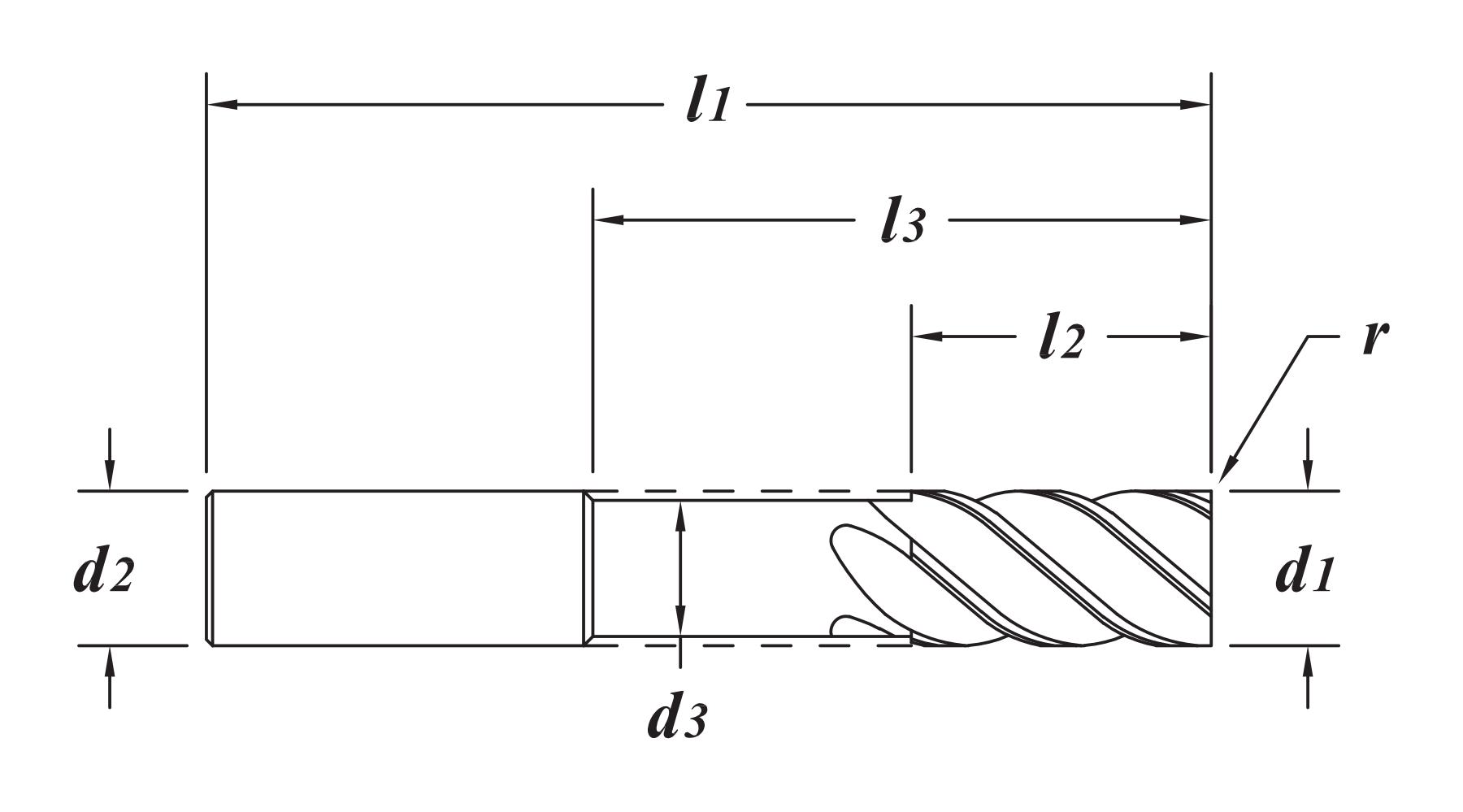

Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.
| EDP | Cutting diameter d1 (mm) | Shank diameter d2 (mm) | Length of cut l2 (mm) | Neck diameter d3 (mm) | Neck length (mm) | Reach l3 (mm) | Overall length l1 (mm) | Corner radius r (mm) | Flutes | End type | Coating | Shank flat | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50000 | 6.00 mm | 6.0 mm | 13 mm | - | - | - | 50 mm | - | 5 | SQ | ALCRN | - | 0.0500 |
| 50001 | 6.00 mm | 6.0 mm | 13 mm | - | - | - | 50 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.0500 |
| 50002 | 6.00 mm | 6.0 mm | 19 mm | - | - | - | 65 mm | - | 5 | SQ | ALCRN | - | 0.0600 |
| 50003 | 6.00 mm | 6.0 mm | 19 mm | - | - | - | 65 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.0600 |
| 50004 | 6.00 mm | 6.0 mm | 13 mm | 5.4000 | 7.0000 | 20.0000 | 65 mm | - | 5 | SQ | ALCRN | - | 0.0600 |
| 50005 | 6.00 mm | 6.0 mm | 13 mm | 5.4000 | 7.0000 | 20.0000 | 65 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.0600 |
| 50006 | 6.00 mm | 6.0 mm | 13 mm | 5.4000 | 7.0000 | 20.0000 | 65 mm | 1.0000 | 5 | RAD | ALCRN | - | 0.0600 |
| 50023 | 7.00 mm | 8.0 mm | 22 mm | - | - | - | 65 mm | 0.2000 | 5 | RAD | ALCRN | - | 0.1000 |
| 50024 | 8.00 mm | 8.0 mm | 22 mm | - | - | - | 65 mm | 0.2000 | 5 | RAD | ALCRN | - | 0.1000 |
| 50025 | 8.00 mm | 8.0 mm | 22 mm | - | - | - | 65 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.1000 |
| 50026 | 8.00 mm | 8.0 mm | 19 mm | 7.2000 | 7.0000 | 26.0000 | 75 mm | - | 5 | SQ | ALCRN | - | 0.1200 |
| 50027 | 8.00 mm | 8.0 mm | 19 mm | 7.2000 | 7.0000 | 26.0000 | 75 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.1100 |
| 50028 | 8.00 mm | 8.0 mm | 19 mm | 7.2000 | 7.0000 | 26.0000 | 75 mm | 1.0000 | 5 | RAD | ALCRN | - | 0.1200 |
| 50043 | 10.00 mm | 10.0 mm | 22 mm | - | - | - | 70 mm | - | 5 | SQ | ALCRN | - | 0.1700 |
| 50044 | 10.00 mm | 10.0 mm | 22 mm | - | - | - | 70 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.1700 |
| 50045 | 10.00 mm | 10.0 mm | 22 mm | 9.0000 | 10.0000 | 32.0000 | 75 mm | - | 5 | SQ | ALCRN | - | 0.1700 |
| 50046 | 10.00 mm | 10.0 mm | 22 mm | 9.0000 | 10.0000 | 32.0000 | 75 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.1800 |
| 50047 | 10.00 mm | 10.0 mm | 22 mm | 9.0000 | 10.0000 | 32.0000 | 75 mm | 1.0000 | 5 | RAD | ALCRN | - | 0.1800 |
| 50048 | 12.00 mm | 12.0 mm | 32 mm | - | - | - | 75 mm | - | 5 | SQ | ALCRN | - | 0.2500 |
| 50049 | 12.00 mm | 12.0 mm | 32 mm | - | - | - | 75 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.2400 |
| 50051 | 12.00 mm | 12.0 mm | 26 mm | 10.8000 | 12.0000 | 38.0000 | 100 mm | - | 5 | SQ | ALCRN | - | 0.3500 |
| 50052 | 12.00 mm | 12.0 mm | 26 mm | 10.8000 | 12.0000 | 38.0000 | 100 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.3500 |
| 50053 | 12.00 mm | 12.0 mm | 26 mm | 10.8000 | 12.0000 | 38.0000 | 100 mm | 1.0000 | 5 | RAD | ALCRN | - | 0.3500 |
| 50074 | 16.00 mm | 16.0 mm | 32 mm | - | - | - | 88 mm | - | 5 | SQ | ALCRN | - | 0.5100 |
| 50075 | 16.00 mm | 16.0 mm | 32 mm | - | - | - | 88 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.5300 |
| 50076 | 16.00 mm | 16.0 mm | 32 mm | 14.4000 | 18.0000 | 50.0000 | 100 mm | - | 5 | SQ | ALCRN | - | 0.5800 |
| 50077 | 16.00 mm | 16.0 mm | 32 mm | 14.4000 | 18.0000 | 50.0000 | 100 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.5700 |
| 50078 | 18.00 mm | 18.0 mm | 32 mm | - | - | - | 100 mm | 0.7500 | 5 | RAD | ALCRN | - | 0.7700 |
| 50092 | 20.00 mm | 20.0 mm | 38 mm | - | - | - | 100 mm | - | 5 | SQ | ALCRN | - | 0.9200 |
| 50093 | 20.00 mm | 20.0 mm | 38 mm | - | - | - | 100 mm | 0.7500 | 5 | RAD | ALCRN | - | 0.9100 |
| 50112 | 12.00 mm | 12.0 mm | 26 mm | - | - | - | 75 mm | 2.0000 | 5 | RAD | ALCRN | - | 0.2600 |
| 50115 | 12.00 mm | 12.0 mm | 26 mm | - | - | - | 75 mm | 2.5000 | 5 | RAD | ALCRN | - | 0.2500 |
| 50299 | 12.00 mm | 12.0 mm | 32 mm | - | - | - | 75 mm | - | 5 | SQ | ALCRN | Y | 0.2400 |
| 50300 | 12.00 mm | 12.0 mm | 32 mm | - | - | - | 75 mm | 0.5000 | 5 | RAD | ALCRN | Y | 0.2400 |
| 50301 | 12.00 mm | 12.0 mm | 26 mm | 10.8000 | 12.0000 | 38.0000 | 100 mm | - | 5 | SQ | ALCRN | Y | 0.3500 |
| 50302 | 12.00 mm | 12.0 mm | 26 mm | 10.8000 | 12.0000 | 38.0000 | 100 mm | 0.5000 | 5 | RAD | ALCRN | Y | 0.3500 |
| 50303 | 12.00 mm | 12.0 mm | 26 mm | 10.8000 | 12.0000 | 38.0000 | 100 mm | 1.0000 | 5 | RAD | ALCRN | Y | 0.3500 |
| 50327 | 16.00 mm | 16.0 mm | 32 mm | - | - | - | 88 mm | - | 5 | SQ | ALCRN | Y | 0.5100 |
| 50328 | 16.00 mm | 16.0 mm | 32 mm | - | - | - | 88 mm | 0.5000 | 5 | RAD | ALCRN | Y | 0.5300 |
| 50329 | 16.00 mm | 16.0 mm | 32 mm | 14.4000 | 18.0000 | 50.0000 | 100 mm | - | 5 | SQ | ALCRN | Y | 0.5800 |
| 50343 | 20.00 mm | 20.0 mm | 38 mm | - | - | - | 100 mm | - | 5 | SQ | ALCRN | Y | 0.9500 |
| 50344 | 20.00 mm | 20.0 mm | 38 mm | - | - | - | 100 mm | 0.7500 | 5 | RAD | ALCRN | Y | 0.9400 |
| 50420 | 16.00 mm | 16.0 mm | 32 mm | - | - | - | 88 mm | 1.0000 | 5 | RAD | ALCRN | - | 0.5300 |
| 50422 | 16.00 mm | 16.0 mm | 32 mm | - | - | - | 88 mm | 3.0000 | 5 | RAD | ALCRN | - | 0.5300 |
| 50423 | 12.00 mm | 12.0 mm | 42 mm | - | - | - | 100 mm | - | 5 | SQ | ALCRN | - | 0.3100 |
| 50424 | 16.00 mm | 16.0 mm | 32 mm | - | - | - | 88 mm | 4.0000 | 5 | RAD | ALCRN | - | 0.5000 |
| 50425 | 12.00 mm | 12.0 mm | 42 mm | - | - | - | 100 mm | 0.3000 | 5 | RAD | ALCRN | - | 0.3100 |
| 50426 | 16.00 mm | 16.0 mm | 32 mm | 14.4000 | 18.0000 | 50.0000 | 100 mm | 1.0000 | 5 | RAD | ALCRN | - | 0.5700 |
| 50427 | 12.00 mm | 12.0 mm | 42 mm | - | - | - | 100 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.3100 |
| 50428 | 16.00 mm | 16.0 mm | 32 mm | 14.4000 | 18.0000 | 50.0000 | 100 mm | 3.0000 | 5 | RAD | ALCRN | - | 0.5700 |
| 50429 | 12.00 mm | 12.0 mm | 42 mm | - | - | - | 100 mm | 1.0000 | 5 | RAD | ALCRN | - | 0.3200 |
| 50430 | 16.00 mm | 16.0 mm | 40 mm | - | - | - | 100 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.5700 |
| 50431 | 12.00 mm | 12.0 mm | 42 mm | - | - | - | 100 mm | 2.0000 | 5 | RAD | ALCRN | - | 0.3100 |
| 50432 | 16.00 mm | 16.0 mm | 40 mm | - | - | - | 100 mm | 1.0000 | 5 | RAD | ALCRN | - | 0.5700 |
| 50434 | 16.00 mm | 16.0 mm | 40 mm | - | - | - | 100 mm | 3.0000 | 5 | RAD | ALCRN | - | 0.5700 |
| 50484 | 12.00 mm | 12.0 mm | 26 mm | - | - | - | 75 mm | - | 5 | SQ | ALCRN | - | 0.2600 |
| 50485 | 12.00 mm | 12.0 mm | 26 mm | - | - | - | 75 mm | - | 5 | SQ | ALCRN | Y | 0.2600 |
| 50486 | 12.00 mm | 12.0 mm | 26 mm | - | - | - | 75 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.2600 |
| 50487 | 12.00 mm | 12.0 mm | 26 mm | - | - | - | 75 mm | 0.5000 | 5 | RAD | ALCRN | Y | 0.2500 |
| 51015 | 10.00 mm | 10.0 mm | 22 mm | - | - | - | 70 mm | 0.3000 | 5 | RAD | ALCRN | - | 0.1600 |
| 51016 | 10.00 mm | 10.0 mm | 22 mm | - | - | - | 70 mm | 0.7500 | 5 | RAD | ALCRN | - | 0.1800 |
| 51017 | 10.00 mm | 10.0 mm | 22 mm | - | - | - | 70 mm | 1.0000 | 5 | RAD | ALCRN | - | 0.1800 |
| 51018 | 10.00 mm | 10.0 mm | 22 mm | 9.0000 | 10.0000 | 32.0000 | 75 mm | 0.7500 | 5 | RAD | ALCRN | - | 0.1800 |
| 51019 | 12.00 mm | 12.0 mm | 19 mm | - | - | - | 65 mm | - | 5 | SQ | ALCRN | - | 0.2400 |
| 51020 | 12.00 mm | 12.0 mm | 19 mm | - | - | - | 65 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.2400 |
| 51021 | 12.00 mm | 12.0 mm | 26 mm | - | - | - | 75 mm | 0.3000 | 5 | RAD | ALCRN | - | 0.2700 |
| 51022 | 12.00 mm | 12.0 mm | 26 mm | - | - | - | 75 mm | 0.7500 | 5 | RAD | ALCRN | - | 0.2600 |
| 51023 | 12.00 mm | 12.0 mm | 26 mm | - | - | - | 75 mm | 1.0000 | 5 | RAD | ALCRN | - | 0.2500 |
| 51024 | 12.00 mm | 12.0 mm | 32 mm | - | - | - | 75 mm | 0.3000 | 5 | RAD | ALCRN | - | 0.2400 |
| 51025 | 12.00 mm | 12.0 mm | 32 mm | - | - | - | 75 mm | 0.7500 | 5 | RAD | ALCRN | - | 0.2400 |
| 51026 | 12.00 mm | 12.0 mm | 32 mm | - | - | - | 75 mm | 1.0000 | 5 | RAD | ALCRN | - | 0.2400 |
| 51027 | 12.00 mm | 12.0 mm | 38 mm | - | - | - | 100 mm | - | 5 | SQ | ALCRN | - | 0.3500 |
| 51028 | 12.00 mm | 12.0 mm | 38 mm | - | - | - | 100 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.3200 |
| 51029 | 12.00 mm | 12.0 mm | 52 mm | - | - | - | 100 mm | - | 5 | SQ | ALCRN | - | 0.3000 |
| 51030 | 12.00 mm | 12.0 mm | 52 mm | - | - | - | 100 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.3000 |
| 51053 | 16.00 mm | 16.0 mm | 19 mm | - | - | - | 75 mm | - | 5 | SQ | ALCRN | - | 0.4500 |
| 51054 | 16.00 mm | 16.0 mm | 19 mm | - | - | - | 75 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.4500 |
| 51055 | 16.00 mm | 16.0 mm | 32 mm | - | - | - | 88 mm | 2.0000 | 5 | RAD | ALCRN | - | 0.5400 |
| 51056 | 16.00 mm | 16.0 mm | 32 mm | 14.4000 | 18.0000 | 50.0000 | 100 mm | 2.0000 | 5 | RAD | ALCRN | - | 0.5900 |
| 51072 | 20.00 mm | 20.0 mm | 38 mm | - | - | - | 100 mm | 0.5000 | 5 | RAD | ALCRN | - | 0.9000 |
| 51073 | 20.00 mm | 20.0 mm | 38 mm | - | - | - | 100 mm | 1.0000 | 5 | RAD | ALCRN | - | 0.8800 |
| 51074 | 20.00 mm | 20.0 mm | 38 mm | - | - | - | 100 mm | 1.5000 | 5 | RAD | ALCRN | - | 0.9700 |
| 51075 | 20.00 mm | 20.0 mm | 38 mm | - | - | - | 100 mm | 2.0000 | 5 | RAD | ALCRN | - | 0.9000 |
| 51076 | 20.00 mm | 20.0 mm | 38 mm | - | - | - | 100 mm | 3.0000 | 5 | RAD | ALCRN | - | 0.8800 |
| 51077 | 25.00 mm | 25.0 mm | 38 mm | - | - | - | 100 mm | - | 5 | SQ | ALCRN | - | 1.5500 |
| 51078 | 25.00 mm | 25.0 mm | 38 mm | - | - | - | 100 mm | 0.5000 | 5 | RAD | ALCRN | - | 1.4300 |
| 51079 | 25.00 mm | 25.0 mm | 38 mm | - | - | - | 100 mm | 0.7500 | 5 | RAD | ALCRN | - | 0.0000 |
| 51080 | 25.00 mm | 25.0 mm | 38 mm | - | - | - | 100 mm | 1.5000 | 5 | RAD | ALCRN | - | 1.4300 |
| 51081 | 25.00 mm | 25.0 mm | 38 mm | - | - | - | 100 mm | 3.0000 | 5 | RAD | ALCRN | - | 1.5600 |
No EDP matches. Clear the search to see this series.
Technical overview
Geometry
Staggered flutes to control harmonics
Variable flute design helps with chip evacuation in slots and pockets
Variable flute design helps with chip evacuation in slots and pockets
Construction
Solid submicron grain carbide end mill - center cutting
PCT (Polish Carbide Treatment) enhances tool life
Coating and finish
Variable Helix - 5 flutes - AlCrN Coated
Configuration notes
12mm and larger tools offered with weldon flat
.375" and larger diameters can be modified within 48 hours
.375" and larger diameters can be modified within 48 hours
Tolerances
flute dia. +.000-.002" (+.000-.050mm) · shank dia. -.0001-.0004" (-0.0025-0.0100mm) · radius +.001-.001" (+0.025-0.025mm)
Operating guidance
(The combination of an extended flute length with a weldon flat may cause the flute washout to reach inside some end mill holders)
Advantages
Applications & compatible materials
Applications
- Milling
- Slotting
- High efficiency milling
Compatible materials
- Titanium
- Inconel
- Stainless Steel
