GARR TOOL X7 Carbide End Mill — Metric

Name: GARR TOOL X7 Carbide End Mill — Metric — 8.00 mm / 22 mm / -
Brand: GARR TOOL
SKU: 64100

GARR TOOL X7 Carbide End Mill — Metric

Pricing by quote

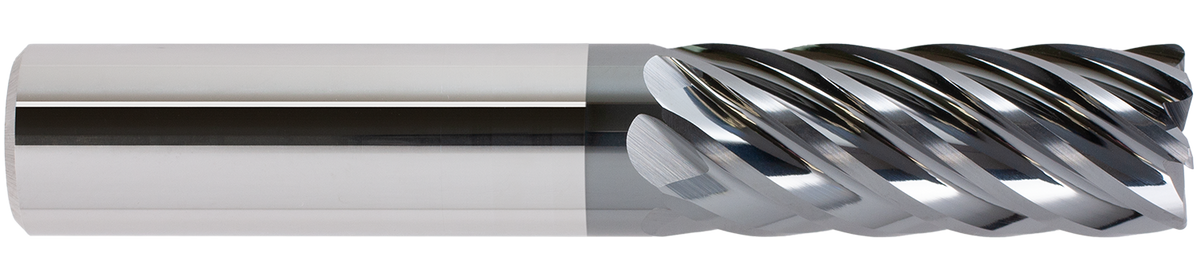

7-flute high-performance end mill made from solid submicron-grain carbide, with a non-center-cutting design. BALIQ ALCRONOS coating (AlCrN-based).

SKU: 64100

Availability confirmed with your quote.

GARR TOOL X7 Carbide End Mill — Metric

Pricing by quote

Technical Specifications

GARR TOOL X7 Carbide End Mill — Metric

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

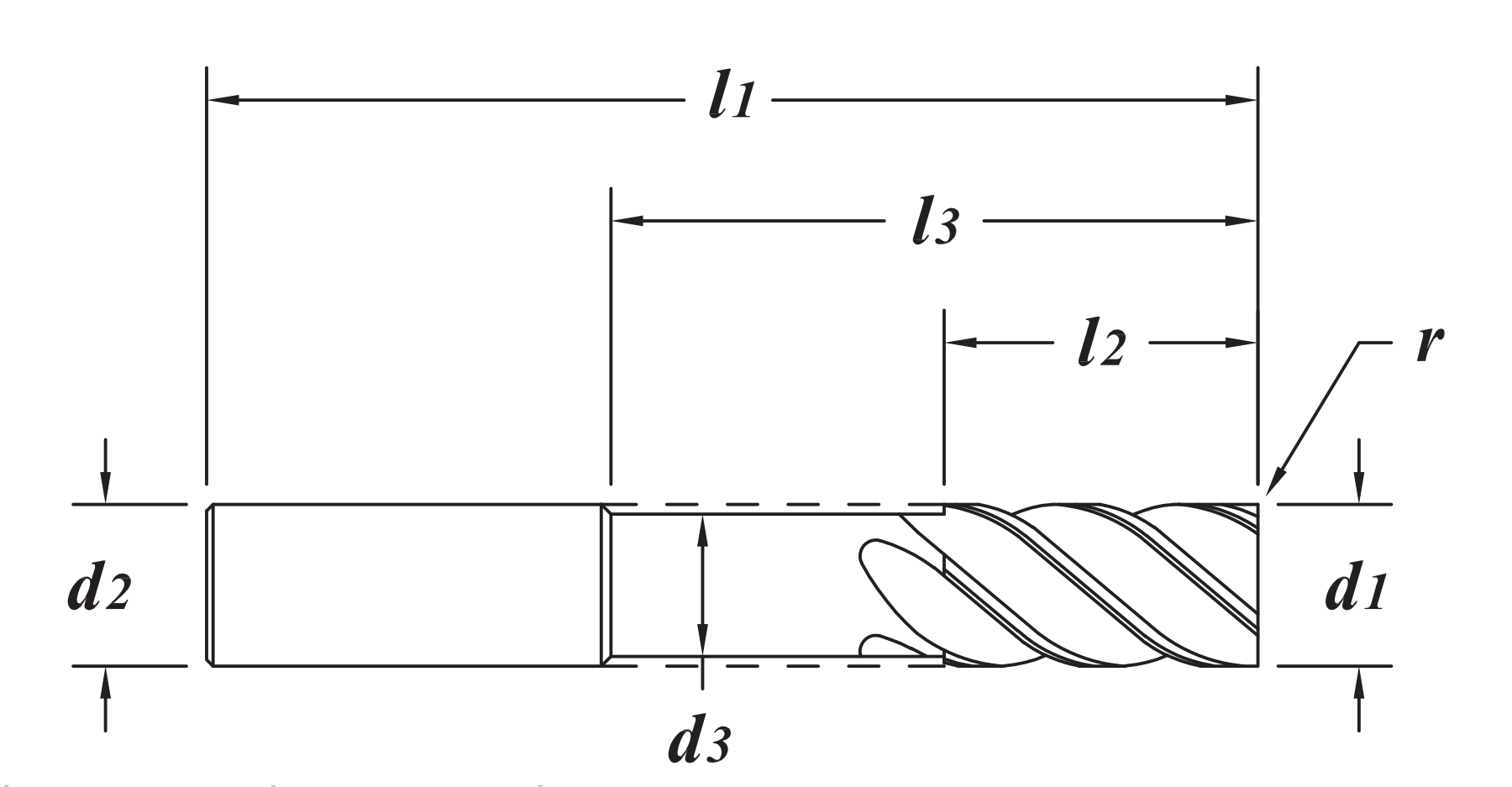

GARR TOOL X7 Carbide End Mill — Metric — manufacturer dimension reference drawing — **Dimension reference**
d₁
Cutting diameter
d₂
Shank diameter
l₂
Length of cut
d₃
Neck diameter
l₃
Reach
l₁
Overall length
r
Corner radius
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Overall length l₁ (mm)	Corner radius r (mm)	Flutes	End type	Coating	Weight (lb)
64100	8.00 mm	8.0 mm	22 mm	65 mm	-	7	SQ	ALCRONOS	0.1100
64102	8.00 mm	8.0 mm	22 mm	65 mm	0.5000	7	RAD	ALCRONOS	0.1100
64104	8.00 mm	8.0 mm	22 mm	65 mm	1.0000	7	RAD	ALCRONOS	0.1100
64105	8.00 mm	8.0 mm	27 mm	75 mm	1.6000	7	RAD	ALCRONOS	0.1300
64106	8.00 mm	8.0 mm	32 mm	75 mm	-	7	SQ	ALCRONOS	0.1300
64108	8.00 mm	8.0 mm	32 mm	75 mm	0.5000	7	RAD	ALCRONOS	0.1300
64110	8.00 mm	8.0 mm	32 mm	75 mm	1.0000	7	RAD	ALCRONOS	0.1300
64124	10.00 mm	10.0 mm	25 mm	70 mm	-	7	SQ	ALCRONOS	0.1800
64126	10.00 mm	10.0 mm	25 mm	70 mm	0.5000	7	RAD	ALCRONOS	0.1700
64128	10.00 mm	10.0 mm	25 mm	70 mm	1.0000	7	RAD	ALCRONOS	0.1800
64130	12.00 mm	12.0 mm	26 mm	75 mm	-	7	SQ	ALCRONOS	0.2800
64132	12.00 mm	12.0 mm	26 mm	75 mm	0.5000	7	RAD	ALCRONOS	0.2800
64134	12.00 mm	12.0 mm	26 mm	75 mm	1.0000	7	RAD	ALCRONOS	0.2800
64136	12.00 mm	12.0 mm	32 mm	75 mm	-	7	SQ	ALCRONOS	0.2700
64138	12.00 mm	12.0 mm	32 mm	75 mm	0.5000	7	RAD	ALCRONOS	0.2800
64140	12.00 mm	12.0 mm	32 mm	75 mm	1.0000	7	RAD	ALCRONOS	0.2800
64141	12.00 mm	12.0 mm	42 mm	100 mm	1.0000	7	RAD	ALCRONOS	0.3700
64142	12.00 mm	12.0 mm	50 mm	100 mm	-	7	SQ	ALCRONOS	0.3600
64144	12.00 mm	12.0 mm	50 mm	100 mm	0.5000	7	RAD	ALCRONOS	0.3500
64146	12.00 mm	12.0 mm	50 mm	100 mm	1.0000	7	RAD	ALCRONOS	0.3600
64178	16.00 mm	16.0 mm	32 mm	88 mm	-	7	SQ	ALCRONOS	0.5800
64180	16.00 mm	16.0 mm	32 mm	88 mm	0.5000	7	RAD	ALCRONOS	0.5800
64182	16.00 mm	16.0 mm	32 mm	88 mm	1.0000	7	RAD	ALCRONOS	0.5800
64200	20.00 mm	20.0 mm	38 mm	100 mm	-	7	SQ	ALCRONOS	1.0400
64202	20.00 mm	20.0 mm	38 mm	100 mm	0.5000	7	RAD	ALCRONOS	1.0500
64204	20.00 mm	20.0 mm	38 mm	100 mm	1.0000	7	RAD	ALCRONOS	1.0300
64230	16.00 mm	16.0 mm	32 mm	88 mm	2.0000	7	RAD	ALCRONOS	0.5700
64231	16.00 mm	16.0 mm	40 mm	100 mm	1.0000	7	RAD	ALCRONOS	0.6400
64232	16.00 mm	16.0 mm	40 mm	100 mm	1.5000	7	RAD	ALCRONOS	0.6500
64234	16.00 mm	16.0 mm	65 mm	125 mm	0.5000	7	RAD	ALCRONOS	0.7800
64236	16.00 mm	16.0 mm	65 mm	125 mm	3.0000	7	RAD	ALCRONOS	0.8000
64248	14.00 mm	14.0 mm	32 mm	88 mm	0.5000	7	RAD	ALCRONOS	0.0000
64290	16.00 mm	16.0 mm	40 mm	100 mm	-	7	SQ	ALCRONOS	0.0000
64291	16.00 mm	16.0 mm	40 mm	100 mm	0.5000	7	RAD	ALCRONOS	0.0000
64292	16.00 mm	16.0 mm	50 mm	100 mm	-	7	SQ	ALCRONOS	0.6300
64293	16.00 mm	16.0 mm	50 mm	100 mm	0.5000	7	RAD	ALCRONOS	0.6300
64294	16.00 mm	16.0 mm	50 mm	100 mm	1.0000	7	RAD	ALCRONOS	0.6300
64313	20.00 mm	20.0 mm	50 mm	100 mm	-	7	SQ	ALCRONOS	0.0000
64315	20.00 mm	20.0 mm	50 mm	100 mm	0.5000	7	RAD	ALCRONOS	1.0100
64317	20.00 mm	20.0 mm	50 mm	100 mm	1.0000	7	RAD	ALCRONOS	0.0000

Technical overview

Geometry

7 Flute High Performance End Mill

Variable flute grind

Construction

Solid submicron grain carbide end mill - non-center cutting

Coating and finish

BALIQ ALCRONOS Coating (AlCrN-based)

Technical details

Polished fluting

Tolerances

flute dia. +.000-.002" (+.000mm-.050mm) · shank dia. h6 · radius +.001-.001" (+.025mm-.025mm)

Operating guidance

Up to 15% Radial (ae) engagement

Advantages

High efficiency milling
Engineered for High Efficiency Milling

Applications & compatible materials

Applications

Milling
High efficiency milling

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 59 KB · English View PDF Cutting parameters · Metric PDF · 55 KB · English View PDF Series catalog PDF · 912 KB · English View PDF
