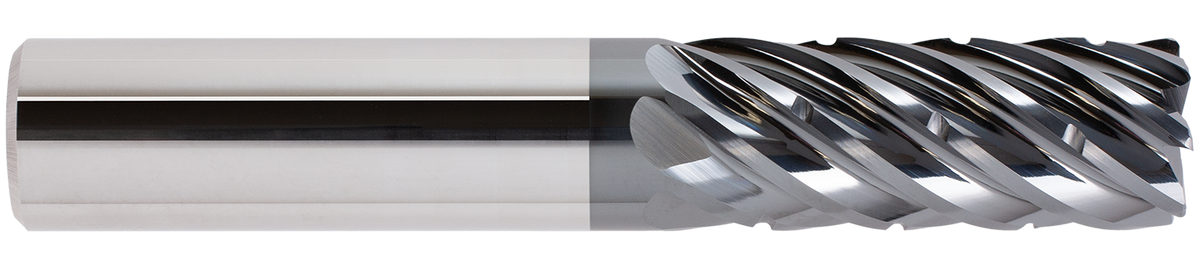

GARR TOOL X7C Carbide End Mill — Metric

Pricing by quote

7-flute high-performance end mill made from solid submicron-grain carbide, with a non-center-cutting design. BALIQ ALCRONOS coating (AlCrN-based). Chip splitters help break long chips.

SKU: 64310

Availability confirmed with your quote.

GARR TOOL X7C Carbide End Mill — Metric

Pricing by quote

Technical Specifications

GARR TOOL X7C Carbide End Mill — Metric

Exact tool data. Clear decisions.

Compare the configurations in this series. Dimensions and geometry apply to the selected EDP.

Tool configurations

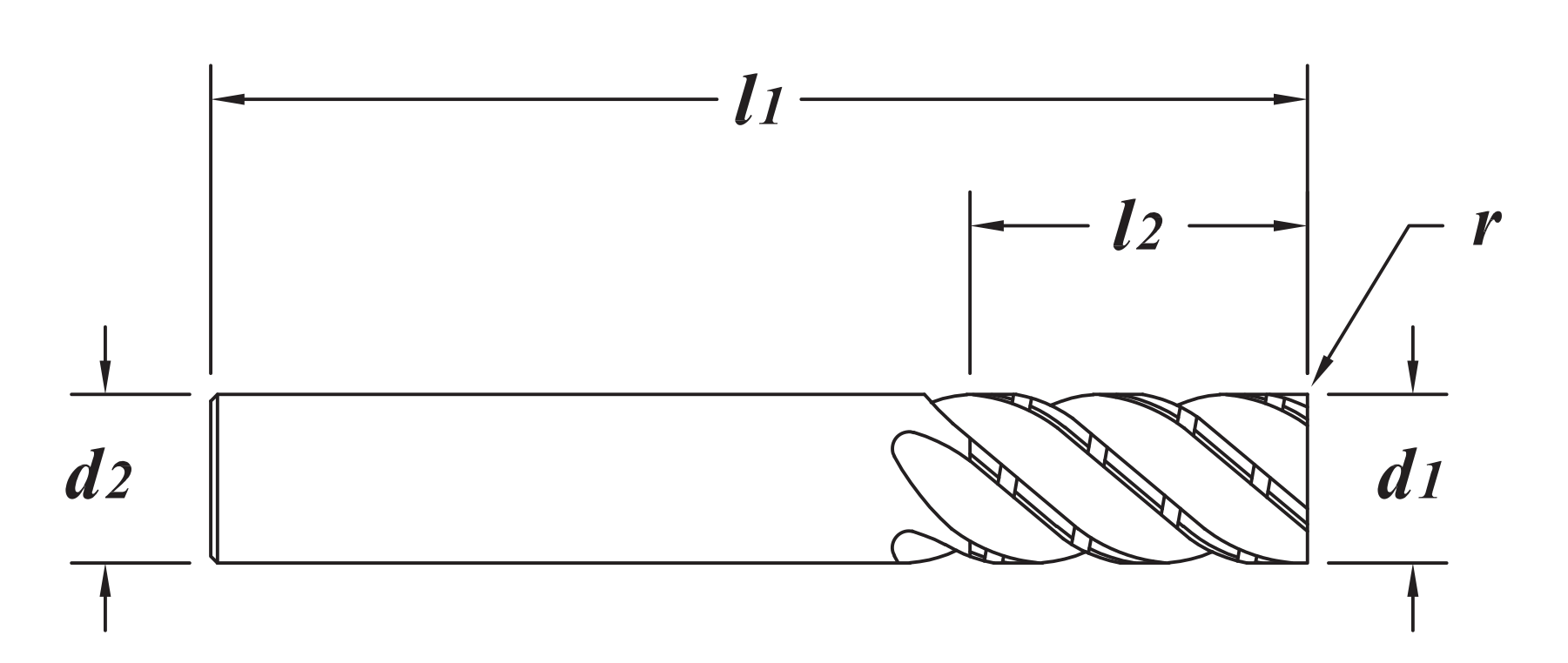

GARR TOOL X7C Carbide End Mill — Metric — manufacturer dimension reference drawing — **Dimension reference**
d₁
Cutting diameter
d₂
Shank diameter
l₂
Length of cut
l₁
Overall length
r
Corner radius
Manufacturer drawing for dimension reference. Refer to the selected EDP for its dimensions.

Dimensions: millimeters. Values preserved from GARR.
EDP	Cutting diameter d₁ (mm)	Shank diameter d₂ (mm)	Length of cut l₂ (mm)	Overall length l₁ (mm)	Corner radius r (mm)	Flutes	End type	Coating	Weight (lb)
64310	12.00 mm	12.0 mm	50 mm	100 mm	0.5000	7	RAD	ALCRONOS	0.3600
64368	16.00 mm	16.0 mm	40 mm	100 mm	0.7500	7	RAD	ALCRONOS	0.6500
64369	16.00 mm	16.0 mm	40 mm	100 mm	1.0000	7	RAD	ALCRONOS	0.6400
64372	16.00 mm	16.0 mm	50 mm	100 mm	1.0000	7	RAD	ALCRONOS	0.6300
64389	20.00 mm	20.0 mm	38 mm	100 mm	0.5000	7	RAD	ALCRONOS	1.0400
64905	10.00 mm	10.0 mm	25 mm	70 mm	-	7	SQ	ALCRONOS	0.1800
64906	10.00 mm	10.0 mm	25 mm	70 mm	0.5000	7	RAD	ALCRONOS	0.1900
64907	10.00 mm	10.0 mm	25 mm	70 mm	1.0000	7	RAD	ALCRONOS	0.1800
64908	12.00 mm	12.0 mm	26 mm	75 mm	-	7	SQ	ALCRONOS	0.2900
64909	12.00 mm	12.0 mm	26 mm	75 mm	0.5000	7	RAD	ALCRONOS	0.2800
64910	12.00 mm	12.0 mm	26 mm	75 mm	1.0000	7	RAD	ALCRONOS	0.2800
64911	12.00 mm	12.0 mm	32 mm	75 mm	-	7	SQ	ALCRONOS	0.2800
64912	12.00 mm	12.0 mm	32 mm	75 mm	0.5000	7	RAD	ALCRONOS	0.2700
64913	12.00 mm	12.0 mm	32 mm	75 mm	1.0000	7	RAD	ALCRONOS	0.2700
64914	12.00 mm	12.0 mm	42 mm	100 mm	1.0000	7	RAD	ALCRONOS	0.3700
64915	12.00 mm	12.0 mm	50 mm	100 mm	-	7	SQ	ALCRONOS	0.3600
64916	12.00 mm	12.0 mm	50 mm	100 mm	1.0000	7	RAD	ALCRONOS	0.3500
64932	14.00 mm	14.0 mm	32 mm	88 mm	0.5000	7	RAD	ALCRONOS	0.0000
64958	16.00 mm	16.0 mm	32 mm	88 mm	-	7	SQ	ALCRONOS	0.0000
64959	16.00 mm	16.0 mm	32 mm	88 mm	0.5000	7	RAD	ALCRONOS	0.0000
64960	16.00 mm	16.0 mm	32 mm	88 mm	1.0000	7	RAD	ALCRONOS	0.0000
64961	16.00 mm	16.0 mm	32 mm	88 mm	2.0000	7	RAD	ALCRONOS	0.0000
64962	16.00 mm	16.0 mm	40 mm	100 mm	-	7	SQ	ALCRONOS	0.0000
64963	16.00 mm	16.0 mm	40 mm	100 mm	0.5000	7	RAD	ALCRONOS	0.0000
64964	16.00 mm	16.0 mm	40 mm	100 mm	1.5000	7	RAD	ALCRONOS	0.6500
64965	16.00 mm	16.0 mm	50 mm	100 mm	-	7	SQ	ALCRONOS	0.6300
64966	16.00 mm	16.0 mm	50 mm	100 mm	0.5000	7	RAD	ALCRONOS	0.6300
64967	16.00 mm	16.0 mm	65 mm	125 mm	0.5000	7	RAD	ALCRONOS	0.7800
64968	16.00 mm	16.0 mm	65 mm	125 mm	3.0000	7	RAD	ALCRONOS	0.7800
64993	20.00 mm	20.0 mm	38 mm	100 mm	-	7	SQ	ALCRONOS	0.0000
64994	20.00 mm	20.0 mm	38 mm	100 mm	1.0000	7	RAD	ALCRONOS	0.0000
64995	20.00 mm	20.0 mm	50 mm	100 mm	-	7	SQ	ALCRONOS	0.0000
64996	20.00 mm	20.0 mm	50 mm	100 mm	0.5000	7	RAD	ALCRONOS	0.0000
64997	20.00 mm	20.0 mm	50 mm	100 mm	1.0000	7	RAD	ALCRONOS	0.0000

Technical overview

Geometry

7 Flute High Performance End Mill

Variable flute grind

Construction

Solid submicron grain carbide end mill - non-center cutting

Coating and finish

BALIQ ALCRONOS Coating (AlCrN-based)

Technical details

Honed edge treatment
Polished fluting

Tolerances

flute dia. +.000-.002" (+.000mm-.050mm) · shank dia. h6 · radius +.001-.001" (+.025mm-.025mm)

Operating guidance

Up to 15% Radial (ae) engagement

Advantages

Chip control
Chip splitters to help break long chips

High efficiency milling
Engineered for High Efficiency Milling

Applications & compatible materials

Applications

Milling
High efficiency milling

Technical documents

Cutting parameters, setup guidance, and the series catalog.

Cutting parameters · Inch PDF · 59 KB · English View PDF Cutting parameters · Metric PDF · 55 KB · English View PDF Series catalog PDF · 913 KB · English View PDF
